EverPro Technologies USB 3.0 Active Optical Cable

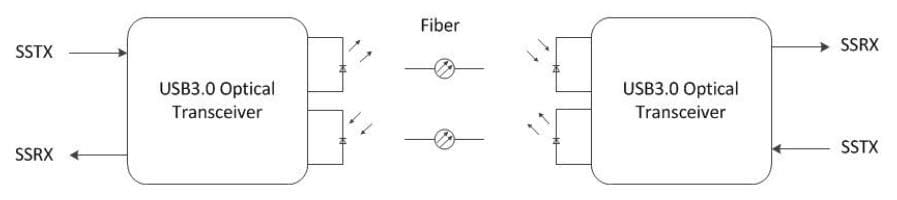

EverPro Technologies USB 3.0 Active Optical Cable is used to extend the transmission distance of USB3.0 transmission up to 100m (330ft). The EPGUP13-A0A0 has two USB3.0 Standard-A connectors. Each end of this connector has one chip to complete the conversion of photoelectric and electro-optical. The middle connecting line is a high-speed multimode optical fiber transmission signal. Without any other connector or power adapter, EPGUP13-A0A0 is powered by vBus of two USB3.0 Standard-A connectors.

Features

Long-distance transmission, over 100 meters
Super speed up to 5Gbps
Plug and play without driver dependent
Thinner and lighter than conventional copper cable

Highly resistant with EMI and RFI
Backward compatible with USB2.0/1.1 when working with SuperTT build-in devices
Powered by USB VBUS (U3D or U3H can provide power for EPGUP13)
Only work with self-powered USB devices

Applications

Machine vision camera extension
Security camera extension
Digital signage and TV wall

Smart digital video surveillance system
Zero client connectivity
