Espressif Systems ESP32-C6-DevKitC-1 Development Board

Espressif Systems ESP32-C6-DevKitC-1 Development Board is based on the ESP32-C6-WROOM-1 module offering 8MB SPI flash. This development board integrates complete Wi-Fi®, BLUETOOTH® LE, Zigbee®, and thread functions. The USB Type-C™ to UART Port is used for supplying power to the board, as well as for communication with the ESP32-C6 chip. This ESP32-C6-DevKitC-1 development board features a USB-to-UART bridge, pin header, boot, and reset button. The development board operates at 3.3V power on LED, and the power regulator converts the 5V supply to 3.3V output.

Features

  • Based on ESP32-C6-WROOM-1(U)
  • Integrates complete Wi-Fi, BLUETOOTH LE, Zigbee, and Thread functions
  • Pin header
  • Boot button
  • Reset button
  • 3.3V power on LED
  • 5V to 3.3V LDO
  • USB-to-UART bridge provides transfer rates up to 3Mbps

Applications

  • Industrial automation
  • Health care
  • Consumer electronics
  • Smart home
  • Smart agriculture
  • POS machines
  • Service robot
  • Audio devices
  • Generic low-power IoT
    • Sensor hubs
    • Data loggers

Required Equipment

  • USB-A to USB-C cable
  • Computer running Windows, Linux, or macOS

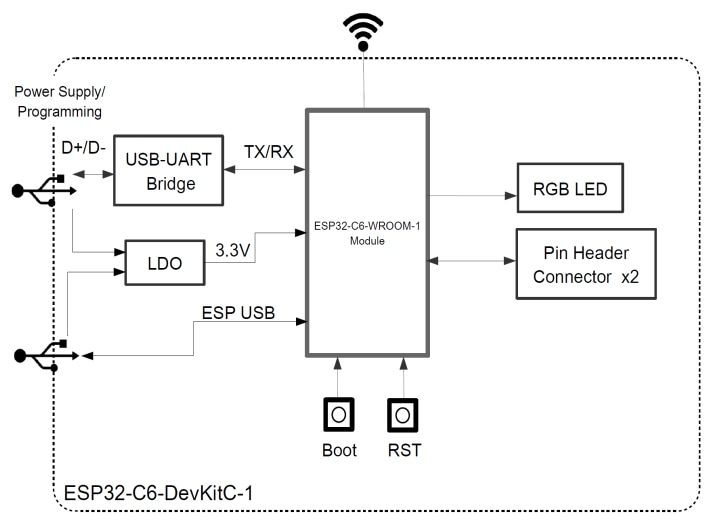

Block Diagram

Block Diagram - Espressif Systems ESP32-C6-DevKitC-1 Development Board

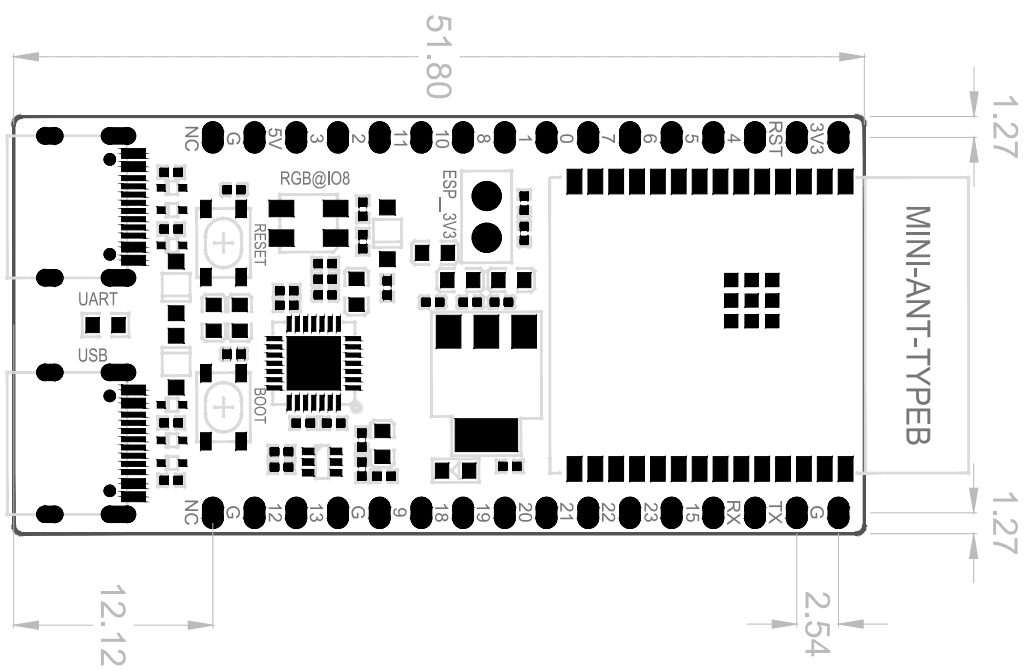

Dimensions (mm)

Mechanical Drawing - Espressif Systems ESP32-C6-DevKitC-1 Development Board
