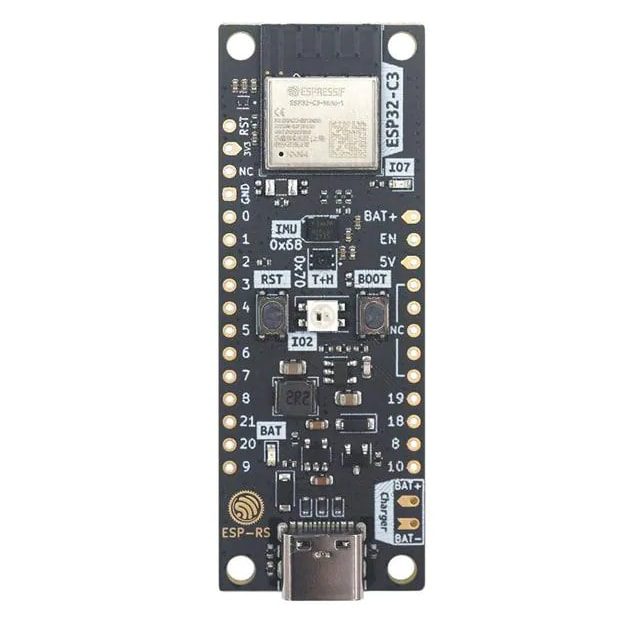

Espressif Systems ESP32-C3-DevKit-RUST-1 Board

Espressif Systems ESP32-C3-DevKit-RUST-1 Board is based on the ESP32-C3, a single-core Wi-Fi® and BLUETOOTH® 5 (LE) microcontroller SoC, with open-source RISC-V architecture. The ESP32-C3-DevKit-RUST-1 Board includes the ESP32-C3-MINI-1 module, a 6DoF IMU, a temperature and humidity sensor, a Li-Ion battery charger, and a Type-C USB. The Espressif Systems ESP32-C3-DevKit-RUST-1 Board is built to be easily used in training sessions, presenting Rust capabilities with all the board peripherals.

Features

SoC
IEEE 802.11 b/g/n-compliant
Bluetooth 5, Bluetooth mesh
32-bit RISC-V single-core processor, up to 160MHz
384KB ROM
400KB SRAM (16KB for cache)
8KB SRAM in RTC
22× programmable GPIOs
3× SPI
2× UART
1× I²C
1× I²S

2× 54-bit general-purpose timers
3× watchdog timers
1× 52-bit system timer
Remote Control Peripheral (RMT)
LED PWM controller (LEDC)
Full-speed USB Serial/JTAG controller
General DMA controller (GDMA)
1× TWAI®
2× 12-bit SAR ADCs, up to 6 channels
1× temperature sensor
