Epson Timing SG-3031CM Crystal Oscillator

Epson Timing SG-3031CM Crystal Oscillator features a built-in 32.7kHz crystal unit that allows an adjustment-free efficient operation. This oscillator offers a 1.2V to 5.5V supply voltage, 15pF maximum output load condition, and a -40°C to +105°C operating temperature range. Epson Timing SG-3031CM Crystal Oscillator is ideal for smart meters, security, and industrial applications.

Applications

  • Industrial
  • Clock for time counting and sleep function
  • Security
  • Smart meters

Specifications

  • Built-in 32.768kHz crystal unit
  • 1.2V to 5.5V supply voltage
  • 0.38µA to 1.3µA current consumption
  • 15pF output load condition
  • 100ns to 200ns rise time/fall time
  • -40°C to +105°C operating temperature range

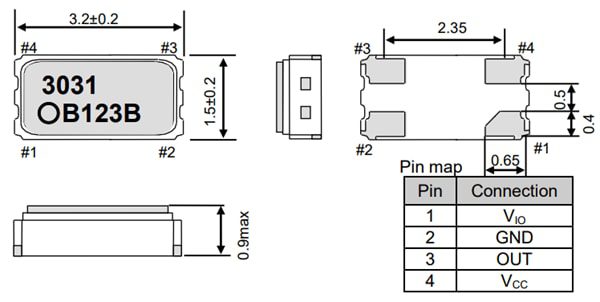

External Dimensions

Epson Timing SG-3031CM Crystal Oscillator
