Epson SG-8101 Programmable Crystal Oscillators

Epson SG-8101 Programmable Crystal Oscillators offer 66% tighter frequency tolerance and 50% lower current consumption than comparable products. Epson SG-8101 Programmable Crystal Oscillators provide a wide temperature range up to +105°C and operate in a variety of environments. The series features a 0.67MHz to 170MHz frequency range and a 1.62V to 3.63V supply voltage range.

Features

-40°C up to +105°C operating temperature range
66% tighter frequency tolerance than comparable products
50% lower current consumption than comparable products

Programmable crystal oscillator
CMOS output
2.5mm x 2.0mm, 3.2mm x 2.5mm, 5.0mm x 3.2mm, and 7.0mm x 5.0mm case sizes

Specifications

Frequency tolerance
- ±15 x 10^-6 (-40°C to +85°C)
- ±20 x 10^-6, ±50 x 10^-6 (-40°C to +105°C)

1.62V to 3.63V supply voltage
0.67MHz to 170MHz output frequency

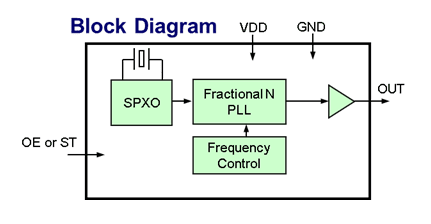

Block Diagram

Block Diagram - Epson SG-8101 Programmable Crystal Oscillators
