Epson FC2012SN Quartz Crystals

Epson FC2012SN Quartz Crystals feature a ±20×10^-6 frequency tolerance and 200MΩ minimum isolation resistance. These crystals are available in 2.05mm x 1.2mm, t = 0.6mm maximum package size. The FC2012SN quartz crystals feature 32.768KHz nominal frequency and 20PPM/C tolerance. These crystals operate at -40°C to 105°C temperature range and 0.1μW typical load capacitance. The FC2012SN quartz crystals are ideally used in wearable products, FA equipment, MCUs for sub-clock, and wireless modules for sub-cock.

Features

Motional resistance (ESR):
- 90kΩ max (-40°C to 85°C)
- 100kΩ max (-40°C to 105°C)
100kΩ ESR
32.768kHZ nominal frequency range
200MΩ min isolation resistance

25±5°C turnover temperature
-40°C to 105°C temperature range
-55°C to 125°C storage temperature range

Applications

Wearable products
FA equipment
IoT devices

MCUs for sub-clock
Wireless modules for sub-cock

Epson FC2012SN Quartz Crystals

Features

Applications

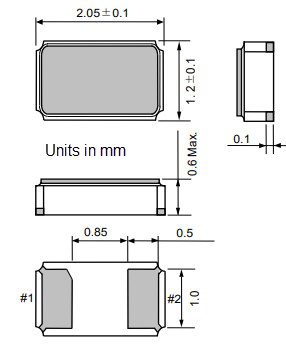

Dimensiom Diagram
