EPCOS / TDK X2 EMI Suppression Film Capacitors (MKP)

TDK X2 EMI Suppression Film Capacitors (MKP) offer high current, high humidity, standard, heavy-duty, high temperature, and compact variants. These radial safety capacitors provide capacitances in the 0.01µF to 8.2µF range with 10% and 20% tolerance options. The components include polypropylene (PP) or metallized polyester dielectrics and straight or crimped leads. The X2 safety rating ensures user safety in the event of short or failure.

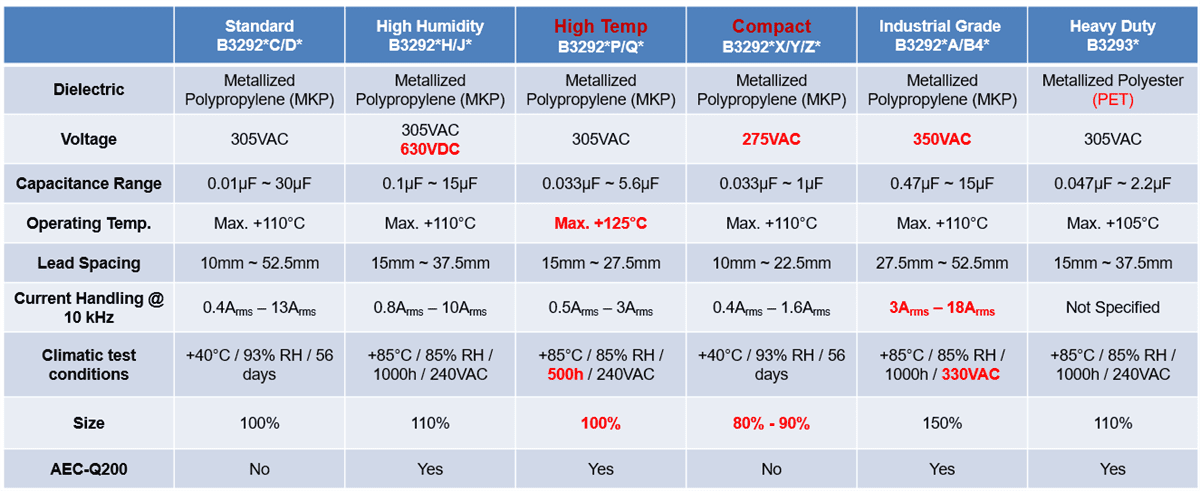

Specifications

EPCOS / TDK X2 EMI Suppression Film Capacitors (MKP)

Features

B3292x A/B4 – X2 High Current
- Increased rated voltage of 350V_AC
- High current capability
- Stable capacitance, even under severe ambient conditions
- UL and EN approved
- Complies with UL 94V-0 standard
B3292x H/J – X2 High Humidity
- Excellent self-healing properties
- High maximum operating temperature of up to +110°C
- Stable capacitance values even under extremely humid conditions
B3292x C/D – X2 Standard
- Very small dimensions
- Self-healing properties
- RoHS compliant
- Halogen-free capacitors available on request

B3293x – X2 Heavy Duty
- High stability of capacitance value
- X2 safety approval (up to 2.2µF)
- RoHS compliant
B3292x P/Q – X2 High Temperature
- Small dimensions
- Good self-healing properties
- AEC-Q200 compliant
- RoHS compliant
B3292x X/Y/Z – X2 Compact
- Small dimensions
- Good self-healing properties
- RoHS compliant

Applications

B3292x A/B4 – X2 High Current

Input and output filters
Photovoltaic inverters
Capacitive power supplies

B3292x H/J – X2 High Humidity

Capacitive power supplies in outdoor energy meters
Across-the-line industrial applications

B3292x C/D – X2 Standard

X2 class for interference suppression
Across-the-line applications

B3293x – X2 Heavy Duty

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

B3292x P/Q – X2 High Temperature

X2 class for interference suppression
Across-the-line applications
Severe ambient conditions
Automotive

B3292x X/Y/Z – X2 Compact

X2 class for interference suppression
Across-the-line applications
Not to be used in series with the line
Indoor applications (avoid severe ambient conditions)
