EPCOS / TDK B84742A 2-Line DIN Rail Power Line Filters

EPCOS / TDK B84742A 2-Line DIN Rail Power Line Filters feature a snap-in DIN rail TH35 installation for 1-phase or DC systems. The filters offer a compact design with a safe-to-touch screw terminal for easy and quick installation. The EPCOS / TDK B84742A 2-Line DIN Rail Power Line Filters have high insertion loss, a 250VAC/DC rated voltage, and a 6A to 30A rated current range. The filters are IP00 (IEC 60529: 2015) protected and UL-approved. The B84742A filters operate at a 55°C rated temperature, ideal for power supplies, industrial electronics, telecommunications, data technology, and DC applications.

Features

  • DIN rail TH35 installation, snap-in
  • Safe-to-touch screw terminal
  • High insertion loss
  • Compact design
  • Easy, quick installation
  • IP00 (IEC 60529: 2015) protected
  • UL approved

Applications

  • Power supplies
  • Industrial electronics
  • Telecommunications
  • Data technology
  • DC applications

Specifications

  • 250VAC/DC rated voltage at 50Hz to 60Hz
  • 6A to 30A rated current range
  • 55°C rated temperature
  • 1075VDC test voltage at 2s (line/line)
  • 2250VDC test voltage at 2s (lines/case)

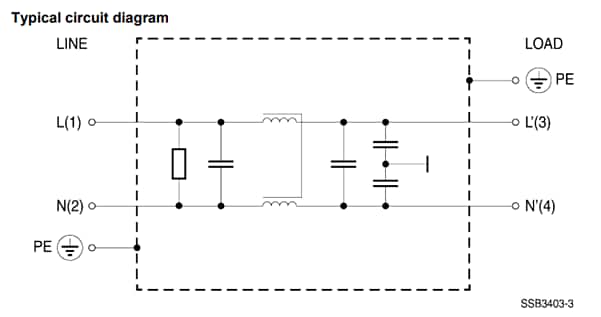

Typical Circuit Diagram

Application Circuit Diagram - EPCOS / TDK B84742A 2-Line DIN Rail Power Line Filters
