EPCOS / TDK B78541A InsuGate Gate-Drive Transformers

EPCOS/TDK B78541A InsuGate Gate-Drive Transformers feature 4pF coupling capacity, 50μH inductance, ≥9.2mm creepage distance, ≥8.14mm clearance distance, and >100MΩ insulation resistance R_ISO. These SMT transformers operate from 100kHz to 500kHz frequency range and -40°C to 150°C temperature range. The transformation ratios of the windings for B78541A2467A003 are 1:1.08 and 1:1.07:0.6 for B78541A2492A003. The B78541A transformers are qualified according to AEC-Q200 and AQG vibration profiles.

The B78541A transformers are available in 13.85mm x 10.5mm x 9.2mm dimensions. These transformers are used in switch-mode power supplies (bridge topologies), isolated DC/DC converters, and Galvanic-isolated single-channel IGBT driver IC. The B78541A transformers are suitable for SiC or GaN semiconductors, and gate driver applications for IGBTs and MOSFETs in e-mobility.

Features

≤10mm height
4pF low coupling capacity
50μH inductance
>100MΩ insulation resistance R_ISO
Small SMD package
RoHS compliant
Qualified according to AEC-Q200 and AQG vibration profile

Insulation characteristics:
- Plastic material UL 94V-0, CTI ≥600 (Class I)
- (N1, core)/N2 creepage distance ≥9.2mm, ≥8.14mm clearance distance
- Insulated wire according to IEC 61558-1 annex K, temperature class F (155°C)
13.85mm x 10.5mm x 9.2mm dimensions

Applications

Switch-mode power supplies (bridge topologies)
Gate-driver circuits

Isolated DC/DC converters
Galvanic-isolated single-channel IGBT driver IC

EPCOS / TDK B78541A InsuGate Gate-Drive Transformers

Features

Applications

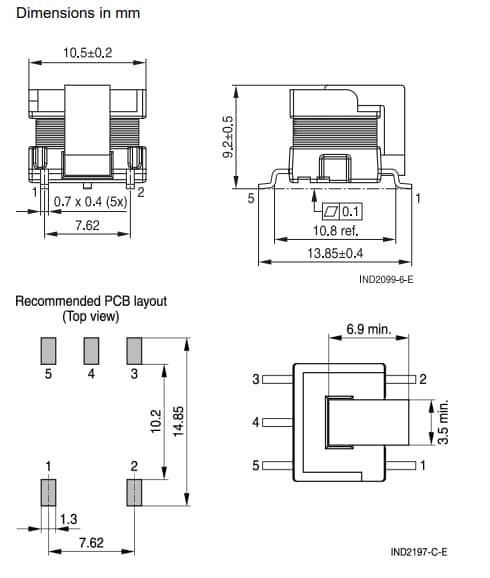

Mechanical Diagram
