EPCOS / TDK B25695Ex MKP DC Film Capacitors

EPCOS / TDK B25695Ex MKP DC Film Capacitors are designed for an operating temperature of up to +105°C, making them ideal for DC link applications. The series offers a rated capacitance range of 95µF to 3400µF and a rated DC voltage range of 700V_DC to 1300V_DC. The B25695Ex modules are intended for indoor mounting and are naturally air-cooled with the option of forced air cooling. The capacitor construction features metallized polypropylene film in an aluminum case with a resin top and an 85mm or 116mm diameter. EPCOS / TDK B25695Ex MKP DC Film Capacitors offer self-healing properties, low dissipation factor, and overvoltage capability. Applications include industrial devices, renewable energies, and rolling stock.

Features

Aluminum case and resin top
Metallized polypropylene film
Operating temperature range up to +105°C
Self-healing properties
Low dissipation factor

Naturally air-cooled (or forced air cooling)
Designed for indoor mounting
Overvoltage resistant (130% of rated voltage every day for 1 minute)
RoHS compatible

Applications

DC links for renewable energies (photovoltaics, wind power)
DC links in rolling stock (trains, subways, streetcars)
DC links for industrial drives

Specifications

95µF to 3400µF rated capacitance range
±10% standard capacitance tolerance
700V_DC to 1300V_DC rated DC voltage range
85mm or 116mm diameter

Screw female (M6) terminals
Threaded bolt at the bottom of aluminum case (M12)
-40°C to +105°C temperature range

EPCOS / TDK B25695Ex MKP DC Film Capacitors

Features

Applications

Specifications

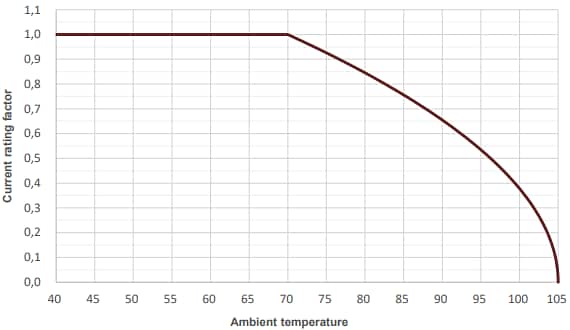

Current Derating Factor

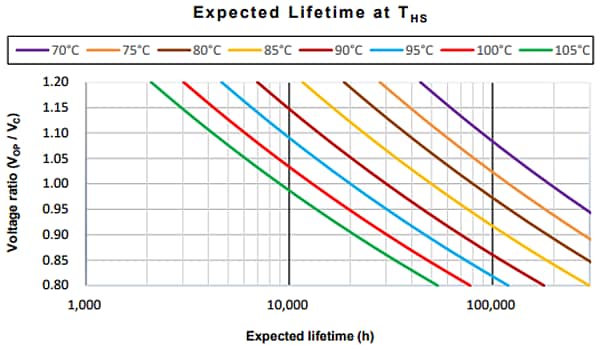

Lifetime Expectancy
