EPCOS / TDK ADL32VHC Power over Coaxial (PoC) Inductors

EPCOS / TDK ADL32VHC Power over Coaxial (PoC) Inductors are constructed with a ferrite I-core with metal shielding, enamel copper wire winding, and one-sided tinned terminals. The series offers a 10µH to 22µH inductance range and a temperature range of up to +150°C. EPCOS / TDK ADL32VHC PoC inductors are AEC-Q200 qualified, RoHS compatible, and suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D. The ADL32VHC series is ideal for automotive electronic applications.

Features

Construction
- Ferrite I-core, metal shielding
- Enamel copper wire winding
- Winding welded to terminals
Terminals
- One-sided tinned terminals
- CuSn6 base material
- Ni, Sn layer composition
- Lead-free tinned

AEC-Q200 qualified
Temperature up to +150°C
Suitable for lead-free reflow soldering as referenced in JEDEC J-STD-020E
10µH to 22µH inductance range
RoHS compatible

Applications

Automotive electronics
PoC

EPCOS / TDK ADL32VHC Power over Coaxial (PoC) Inductors

Features

Applications

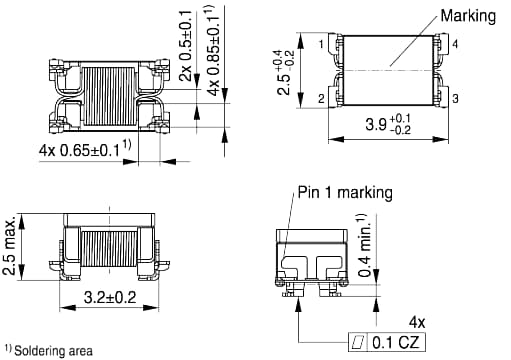

Dimensional Drawing (mm)
