ECS ECX2-LMV SMD MultiVolt™ LVDS Crystal Oscillators

ECS ECX2-LMV SMD MultiVolt™ LVDS Crystal Oscillators are surface-mount LVDS oscillators with MultiVolt capability of 2.375V to 3.63V. ECS ECX2-LMV oscillators offer low in-class jitter of 50fs at 156.250MHz. Applications include networking and communications, optical transceivers, and more.

Features

Ultra-low jitter
50fs at 156.25MHz
RoHS compliant
Tight stability

Wide supply voltage
Compatible with +2.5V or +3.3V power supply
Low power consumption

Applications

Networking and communications
Optical transceivers
Fibre channel

Ethernet/Gbe/SyncE
Passive optical networks
Test and measurement

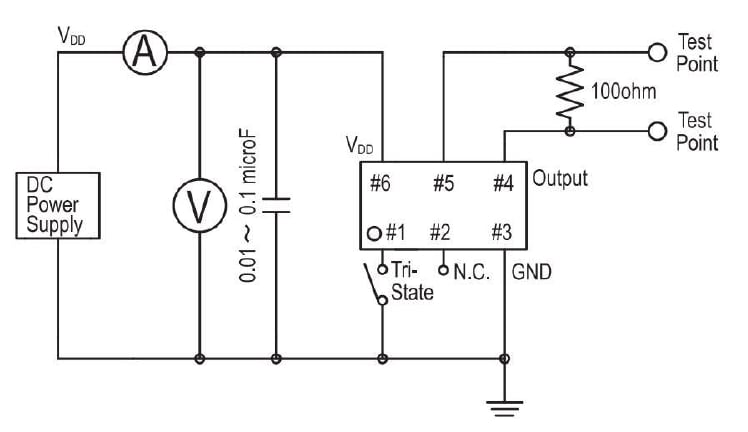

Test Circuit

Application Circuit Diagram - ECS ECX2-LMV SMD MultiVolt™ LVDS Crystal Oscillators
