View Datasheet

ECS ECX-1247B2 SMD Crystals

ECS ECX-1247B2 SMD Crystals come in a 1.6mm x 1.2mm x 0.3mm ceramic package, making them ideal for RFID, NFC, Wi-Fi®, RF, video, and audio applications. The subminiature crystals offer low first-year aging of ±2ppm, 24MHz to 80MHz frequency range, and -30°C or -40°C to +85°C operating temperature range. Additional features include fundamental mode of oscillation, gold (Au) termination finish, and moisture sensitivity level (MSL) 1. ECS ECX-1247B2 SMD Crystals are RoHS compliant.

Features

  • Subminiature size
  • Low first-year aging
  • Fundamental mode of oscillation
  • Gold (Au) termination finish
  • Moisture sensitivity level (MSL) 1
  • RoHS compliant

Applications

  • RFID
  • NFC
  • Wi-Fi
  • RF
  • Video
  • Audio

Specifications

  • 24MHz to 80MHz frequency range
  • ±7ppm frequency tolerance
  • ±2ppm first-year aging at +25°C ±3°C
  • 100µW drive level
  • 1.6mm x 1.2mm x 0.3mm dimensions
  • -30°C or -40°C to +85°C operating temperature range

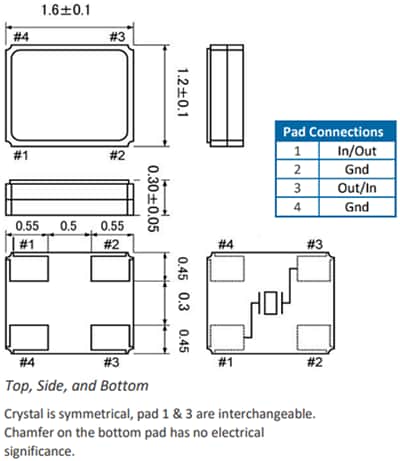

Dimensions (mm)

ECS ECX-1247B2 SMD Crystals
