ECS ECX-1048B 48MHz Ultra-Miniature Crystals

ECS ECX-1048B 48MHz Ultra-Miniature Crystals offer a compact 1.2mm x 1.0mm x 0.35mm ceramic package. The crystals have a frequency range of 32MHz to 60MHz, a ±10ppm frequency tolerance, and a ±20ppm frequency stability. ECS ECX-1048B 48MHz Ultra-Miniature Crystals are ideal for the Internet of Things (IoT) and wearable applications.

Features

Low profile
1.2mm x 1.0mm footprint
RoHS compliant

Applications

IoT
Wearables

Specifications

32MHz to 60MHz frequency range
±10ppm frequency tolerance
±20ppm frequency stability
-40°C to +85°C temperature range
10μW typical, 100μW maximum drive level

Equivalent series resistance (ESR)
- 100Ω @ 32MHz to 47.9MHz
- 80Ω @ 48.0MHz to 60.0MHz
3pF shunt capacitance
10pF load capacitance

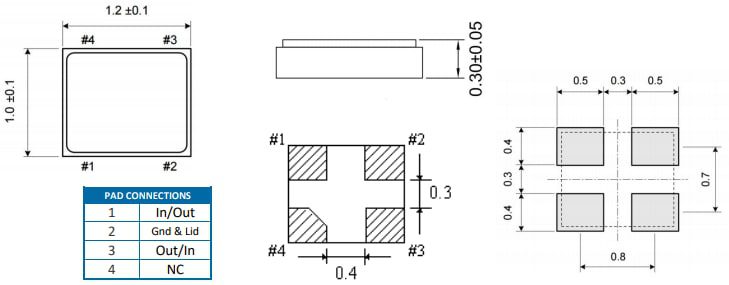

Dimensions (mm)
