ECS ECS-CTA SMD Ceramic Resonators

ECS ECS-CTA SMD Ceramic Resonators feature a low-cost frequency control solution when absolute frequency accuracy is not crucial. The resonators are RoHS compliant and have a surface-mountable 6mm x 3mm package. The ECS ECS-CTA SMD Ceramic Resonators offer an extended -25°C to +85°C operating temperature range, a 2MHz 12MHz frequency range, and a 30Ω to 100Ω resonant resistance.

Features

Surface-mountable resonators
Ceramic construction
Frequency control solution
Low cost

6mm x 3mm package
Industry-standard footprint
Extended temperature range
RoHS compliant

Specifications

2MHz 12MHz frequency range
30Ω to 100Ω resonant resistance
±0.5% frequency tolerance
±0.2% frequency stability

100V_DC withstanding voltage
100MΩ insulation resistance at 10V
-25°C to +85°C operating temperature range
-55°C to +85°C storage temperature range

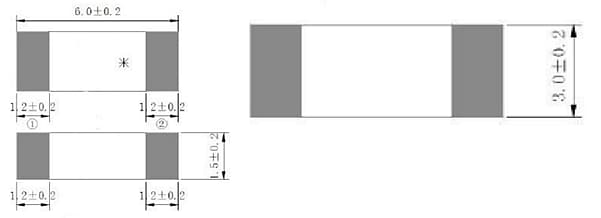

Dimensions (mm)

Chart - ECS ECS-CTA SMD Ceramic Resonators
