ECS ECS-390-CDX-2289 SMD Quartz Crystal

ECS ECS-390-CDX-2289 SMD Quartz Crystal features a 39MHz frequency range with ±8ppm frequency tolerance and 35Ω maximum equivalent series resistance (ESR). This AT-cut crystal offers ±35ppm frequency stability in a temperature range of -40°C to +125°C. Other features include 10pF load capacitance, 100µW drive level, and fundamental oscillation mode. ECS ECS-390-CDX-2289 SMD Quartz Crystal has a 2mm x 1.6mm footprint with a height of 0.45mm. It is compliant with EU RoHS 2015/863 standards.

Features

  • Fundamental oscillation mode
  • Compliant with EU RoHS 2015/863
  • AT cut
  • Moisture Sensitivity Level (MSL) 1

Specifications

  • 2mm x 1.6mm x 0.45mm dimensions
  • 39MHz frequency
  • ±8ppm frequency tolerance
  • ±35ppm frequency stability
  • 10pF load capacitance
  • 100µW drive level
  • 35Ω maximum ESR
  • -40°C to +125°C operating temperature range

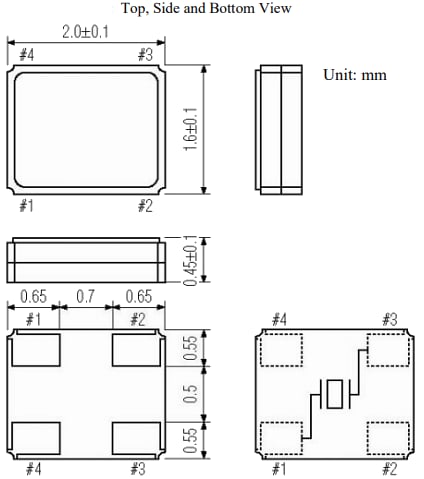

Dimensions

ECS ECS-390-CDX-2289 SMD Quartz Crystal
