ECS ECS-33B2 SMD Crystals

ECS ECS-33B2 SMD Crystals offer low first-year aging of ±2ppm in an industry-standard 3.2mm x 2.5mm x 0.8mm ceramic package. These miniature crystals feature a 10MHz to 54MHz frequency range and fundamental mode of oscillation. The series is RoHS compliant and has a gold (Au) termination finish. ECS ECS-33B2 SMD Crystals are ideal for wireless applications such as the Internet of Things (IoT), wearables, smart home sensors, BLUETOOTH® Low Energy, and Wi-Fi®.

Features

Miniature size
Low aging
Ceramic package
Fundamental mode of oscillation

Gold (Au) termination finish
Moisture sensitivity level (MSL) 1
RoHS compliant

Applications

IoT / wearables
Smart home sensors

Bluetooth LE
Wi-Fi and wireless

Specifications

10MHz to 54MHz frequency range
±2ppm first-year aging at +25°C ±3°C

200µW drive level
3.2mm x 2.5mm x 0.8mm dimensions

ECS ECS-33B2 SMD Crystals

Features

Applications

Specifications

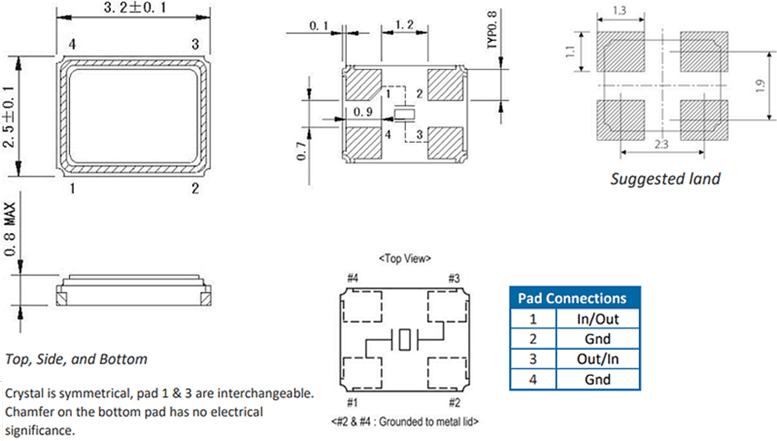

Dimensions (mm)
