ECS ECS-.327-12.5-13X-C 32.768KHz Tuning Fork Crystal

ECS ECS-.327-12.5-13X-C 32.768KHz Tuning Fork Crystal is designed to be used in time management applications. The cost-effective crystal offers a frequency of 32.768KHZ with a ±10ppm frequency tolerance. The series features a resistance of 35KΩ and a load capacitance of 12.5pF. ECS ECS-.327-12.5-13X-C 32.768KHz Tuning Fork Crystal applications include communication equipment, measuring instruments, and microprocessors.

Features

Cost effective
Long-term stability
Pb free and RoHS compliant

Applications

Communication equipment
Measuring instruments
Microprocessors

Specifications

32.768KHz frequency
±10ppm frequency tolerance
12.5pF load capacitance
1μW maximum drive level
35KΩ maximum resistance at series resonance

70,000 typical Q-factor
1.35pF typical shunt capacitance
450 typical capacitance ratio
-20°C to +70°C operating temperature range

ECS ECS-.327-12.5-13X-C 32.768KHz Tuning Fork Crystal

Features

Applications

Specifications

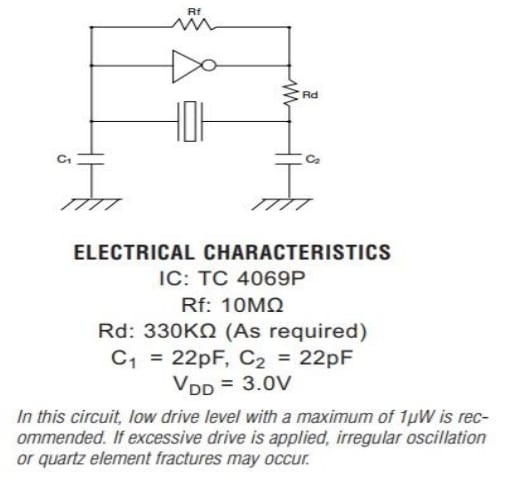

Recommended Oscillation Circuit
