ECS ECS-3215MV-327KE SMD MultiVolt™ Crystal Oscillator

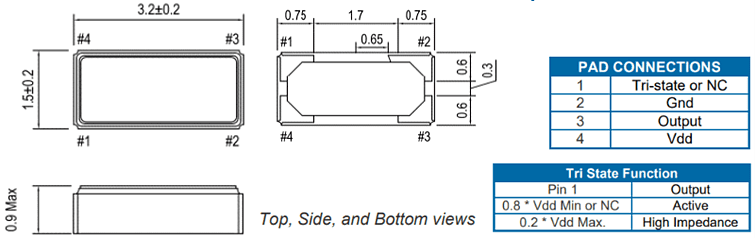

ECS ECS-3215MV-327KE SMD MultiVolt™ Crystal Oscillator features a 32.768kHZ typical frequency and a low current consumption of 1.3µA typical. This miniature device offers improved stability vs. uncompensated tuning fork crystals/XOs in a 3.2mm x 1.5mm x 0.9mm ceramic package. ECS ECS-3215MV-327KE SMD MultiVolt Crystal Oscillator is RoHS compliant and compatible with 1.8V, 2.5V, and 3.3V power supplies. Additional features include ±5ppm frequency tolerance, 30pF output load (CMOS), and 2µA maximum standby current. Typical applications include smart meters, wearable devices, industrial, and the Internet of Things (IoT).
