ECS ECS-320-CDX-2374 Quartz Crystal

ECS ECS-320-CDX-2374 Quartz Crystal is a 32MHz AT-cut crystal with 8pF load capacitance, 3pF shunt capacitance, and 200µW drive level. This quartz crystal features 80Ω maximum Equivalent Series Resistance (ESR) and 500MΩ Insulation Resistance (IR) at 100V_DC. The ECS-320-CDX-2374 quartz crystal operates from -20℃ to 70℃ temperature range and is stored within the -40℃ to 105℃ temperature range.

Features

Fundamental oscillation mode
AT-cut cutting mode
Tape and reel packaging

Compliant with EU RoHS 2015/863
MSL 1

Specifications

32MHz nominal frequency
32MHz center frequency
8pF load capacitance
3pF shunt capacitance
200µW drive level
80Ω maximum Equivalent Series Resistance (ESR)
500MΩ Insulation Resistance (IR) at 100V_DC

-20℃ to 70℃ operating temperature range
-40℃ to 105℃ storage temperature range
-10ppm to 10ppm tolerance (dF/Fo)
-10ppm to 10ppm stability over temperature (dF/F25)
-2ppm to 2ppm aging (dF/F25) – First year

Dimensions

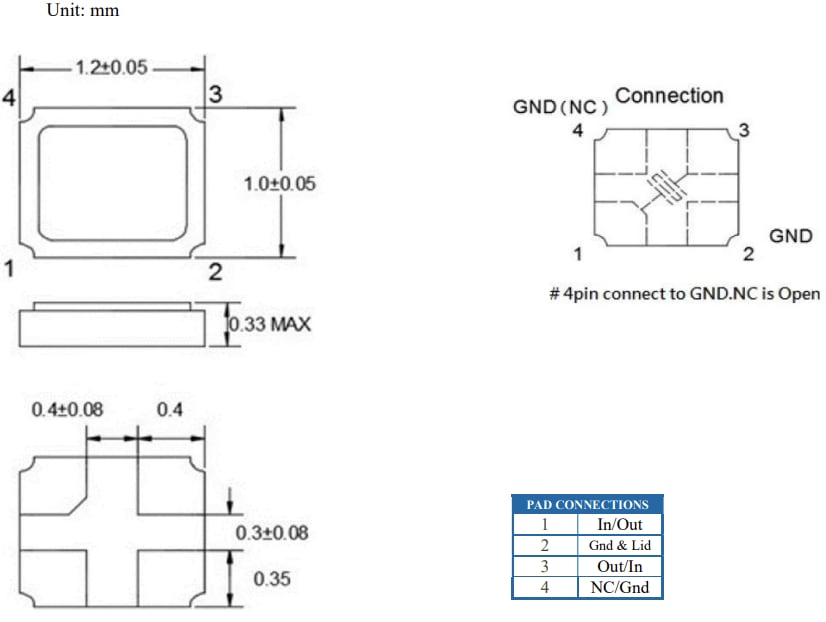

Mechanical Drawing - ECS ECS-320-CDX-2374 Quartz Crystal
