ECS ECS-320-CDX-2292 SMD Quartz Crystal

ECS ECS-320-CDX-2292 SMD Quartz Crystal features a low profile of 0.3mm with a 1.6mm x 1.2mm footprint. This AT-cut crystal operates in the 32MHz frequency range with 60Ω maximum equivalent series resistance (ESR). Other features include ±10ppm frequency tolerance, ±20ppm frequency stability, 10pF load capacitance, and a fundamental oscillation mode. ECS ECS-320-CDX-2292 SMD Quartz Crystal has a -40°C to +85°C operating temperature range and complies with EU RoHS 2015/863 requirements.

Features

  • Low profile
  • Fundamental oscillation mode
  • AT cut
  • Compliant with EU RoHS 2015/863
  • Moisture Sensitivity Level (MSL) 1

Specifications

  • 1.6mm x 1.2mm x 0.3mm dimensions
  • 32MHz frequency
  • ±10ppm frequency tolerance
  • ±20ppm frequency stability
  • 10pF load capacitance
  • 60Ω maximum ESR
  • -40°C to +85°C operating temperature range

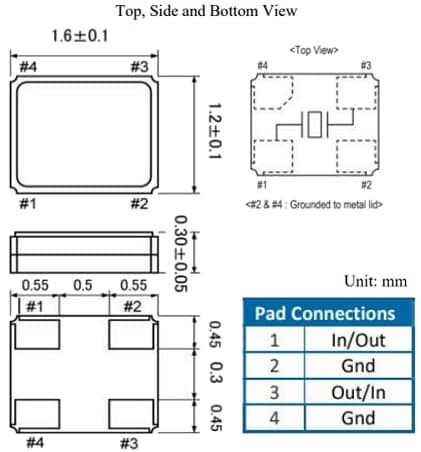

Dimensions

ECS ECS-320-CDX-2292 SMD Quartz Crystal
