ECS ECS-2520MVLC SMD MultiVolt™ Crystal Oscillators

ECS ECS-2520MVLC SMD MultiVolt™ Low Current Crystal Oscillators feature a MultiVolt capability of 1.6V to 3.6V. These miniature CMOS oscillators come in a ceramic package that measures 2.5mm x 2.0mm x 0.8mm. ECS ECS-2520MVLC MultiVolt Crystal Oscillators offer low jitter and are compatible with 1.8V, 2.5V, or 3.3V power supplies. Typical applications include LoRa WAN, low power/portables, industrial, and Internet of Things (IoT).

Features

2.5mm x 2.0mm footprint
Low current
Low jitter

Compatible with 1.8V, 2.5V, or 3.3V power supplies
Wide supply voltage

Applications

LoRa WAN
Low power/portables

Industrial
IoT

Specifications

1.6V to 3.6V supply voltage
1MHz to 60MHz frequency range
±50ppm frequency stability

5mS start-up time
2.5mm x 2.0mm x 0.8mm ceramic package
-40°C to +85°C operating temperature range

ECS ECS-2520MVLC SMD MultiVolt™ Crystal Oscillators

Features

Applications

Specifications

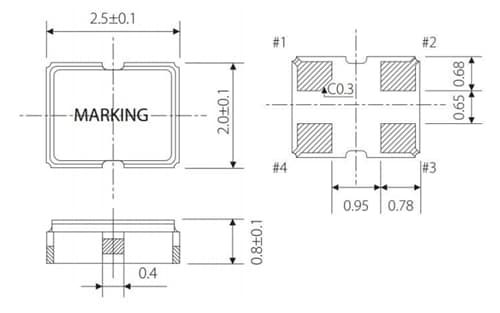

Dimensions (mm)
