ECS ECOC-7050 LVCMOS SMD OCXO Oscillators

ECS ECOC-7050 Low-voltage Complementary Metal Oxide Semiconductor (LVCMOS) SMD OCXO Oscillators feature lead-free and RoHS-compliant devices. The ECOC-7050 series has a 7mm x 5mm x 3.3mm package with a 10,000MHz to 50,000MHz frequency range. The ECS ECOC-7050 LVCMOS SMD OCXO Oscillators operate with a 15pF output load and are ideal for 5G, small cell, SyncE, and IEEE 1588 applications.

Features

LVCMOS OCXO
7mm x 5mm x 3.3mm package

Pb-free
RoHS compliant

Applications

5G
Small cells

SyncE
IEEE 1588

Specifications

10,000MHz to 50,000MHz frequency range
3.135V_DC to 3.465V_DC input voltage range
750mA current consumption during warm-up
200mA current consumption at steady state
1min warm-up time

15pF output load
±500ppb initial frequency tolerance
0V to 3.3V control voltage at 100kΩ min input impedance
-40°C to +85°C operating temperature range
-55°C to +95°C storage temperature range

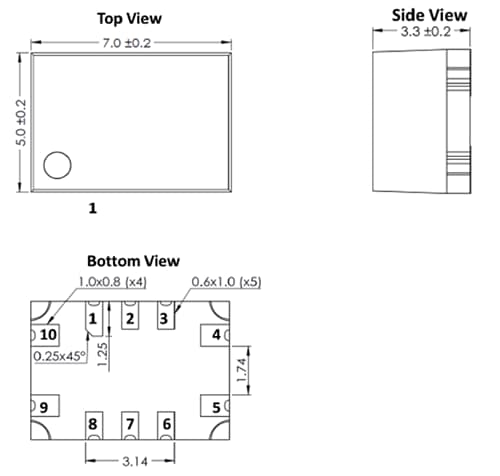

Dimensions (mm)

Chart - ECS ECOC-7050 LVCMOS SMD OCXO Oscillators

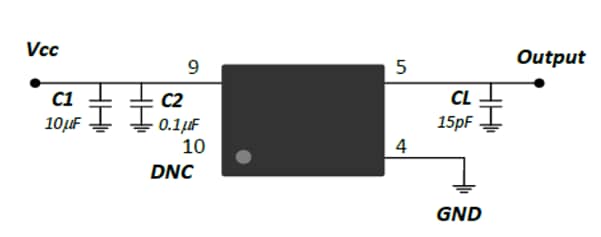

Test Circuit Diagram

Application Circuit Diagram - ECS ECOC-7050 LVCMOS SMD OCXO Oscillators
