ECS CSM-8A SMD Crystals

ECS CSM-8A SMD Crystals feature a 6MHz to 6000MHz frequency range, up to 100Ω ESR rating, and a low-profile design. These crystals come in a glass-sealed ceramic package and offer tight stability and high reliability. ECS CSM-8A SMD Crystals have a -10°C to +70°C operating temperature range. The series is ideal for PCMCIA, Ethernet, and fax modem card applications.

Features

Low-profile design
Glass-sealed ceramic packaging

Tight stability
High reliability

Applications

PCMCIA
Ethernet
Fax modem cards

Specifications

6MHz to 100MHz frequency range
60Ω to 100Ω ESR rating
±30ppm frequency tolerance
5pF shunt capacitance

500µW drive level
-10°C to +70°C operating temperature range
RoHS compliant, 7(c)-I exemption

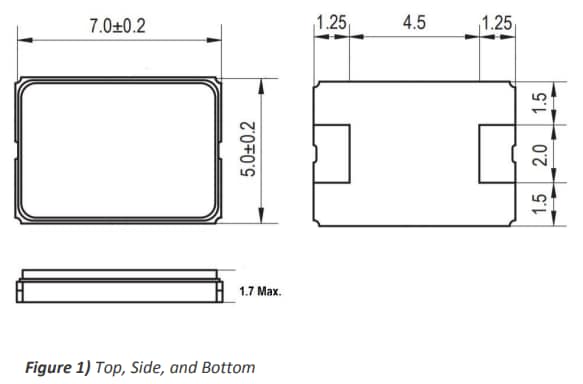

Dimensions (MM)

ECS CSM-8A SMD Crystals
