Eaton HS/HSL Hybrid Cylindrical Cell Supercapacitors

Eaton HS/HSL Hybrid Cylindrical Cell Supercapacitors offer high reliability, high power, low ESR, and ultra-high capacitance energy storage utilizing proprietary, environmentally friendly materials and processes. These maintenance-free supercapacitors can be applied as the sole energy storage or in combination with batteries to optimize cost, lifespan, and run time. Eaton HS/HSL Hybrid Cylindrical Cell Supercapacitors are tailored for applications for backup power, pulse power, and hybrid power systems.

Access Eaton’s interactive supercapacitor product display board

Features

3.8V operating voltage for high energy
Up to 8 times energy density compared to standard supercapacitors

Low ESR for high power density
Low self-discharge ideal for use with batteries
UL recognized, lead free, and RoHS compliant

Applications

Industrial backup/ride through
Backup for storage servers

Water and gas smart meters
IoT energy storage

Specifications

30F to 220F capacitance range
3.8V (2.2V minimum) working voltage
4.0V surge voltage
-20% to +20% (+20°C) capacitance tolerance
1000 hour lifetime
0.15A to 1.1A continuous current

Operating temperature ranges
- -25°C to +60°C for HSL components
- -15°C to +70°C for HS components
- -15°C to +85°C (with linear voltage derating to 3.5V at +85°C) for the HS series extended operating temperature range

Eaton HS/HSL Hybrid Cylindrical Cell Supercapacitors

Features

Applications

Specifications

Videos

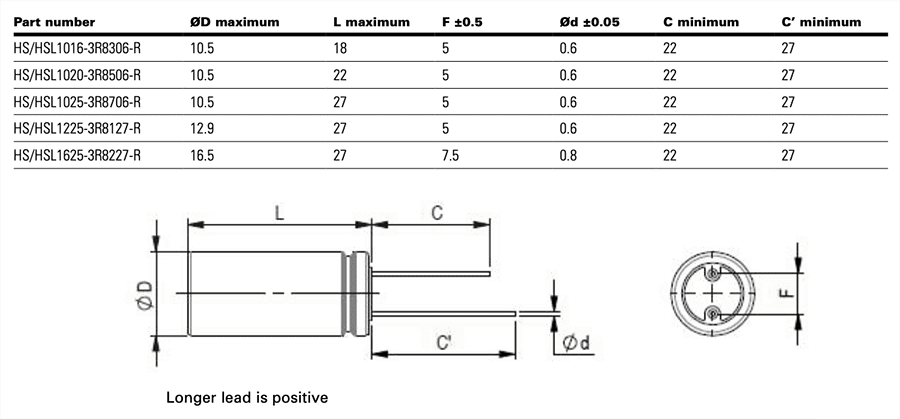

Dimensions (mm)
