Eaton AHCA/AHC5A/AHCFA High-Voltage Ceramic Tube Fuses

Eaton AHCA/AHC5A/AHCFA High-Voltage Ceramic Tube Fuses are automotive grade fast-acting performance fuses with a 6.3mm x 32mm (¼” x 1¼”) compact 3AB footprint. These fuses incorporate up to 500V_AC ratings and provide reliable overcurrent protection up to 30A for high-voltage applications. The AHCA/AHC5A/AHCFA high-voltage fuses feature very high interrupting ratings to help safely protect against dangerous high fault currents. These fuses are available in cartridge, axial lead, and PCB terminal mount versions. Typical applications include onboard power conversion (Inverter/OBC/PDU) for xEVs, stationary EV charging stations, single-phase and 3-phase UPS, energy storage, and battery management systems.

Features

High-voltage ceramic tube fuses
Automotive grade qualified
Compact 3AB footprint:
- 6.3mm x 32mm (¼” x 1 ¼”)
Fast-acting performance

Up to 500V_AC rating
Cartridge and axial lead versions are available
Very high interrupting ratings to help safely protect against dangerous high fault currents

Applications

On-board power conversion (Inverter, OBC, and PDU) for xEVs
Stationary EV charging stations
Single-phase and 3-phase UPS and VFD (V_AC input for rectifier and V_DC input/battery)

Industrial control panels and UL508A panel shops
Energy storage and battery management systems
High voltage power conversion (AC/DC, AC/AC, DC/DC, and DC/AC)

Eaton AHCA/AHC5A/AHCFA High-Voltage Ceramic Tube Fuses

Features

Applications

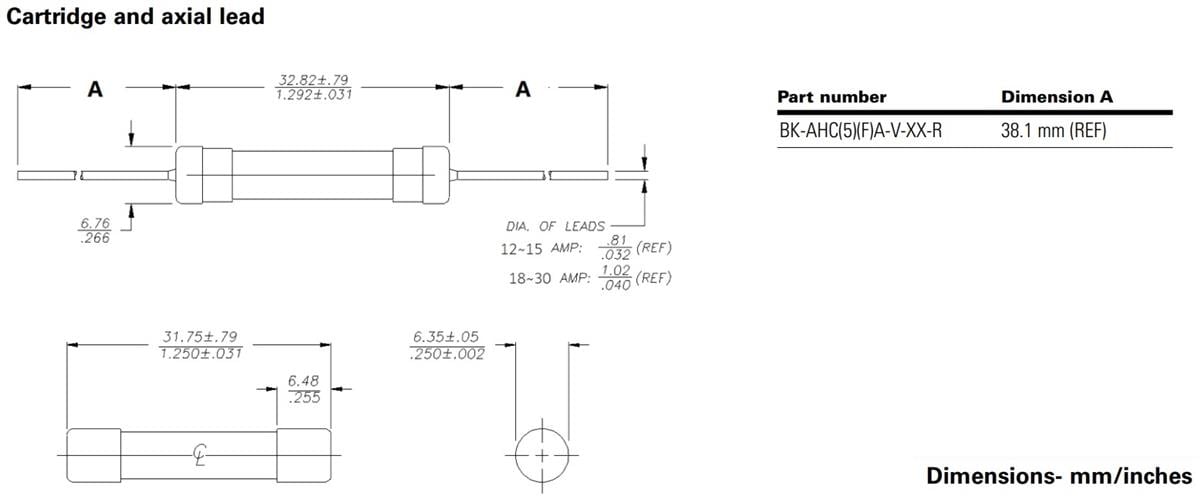

Dimensions
