Eaton ACDL1V/ACDL2V Automotive Class D Audio inductors

Eaton ACDL1V/ACDL2V Automotive Class D Audio Inductors feature a low loss, low DCR, and high-frequency operation. These audio inductors also feature shielded construction, dual inductors in a single package, and Moisture Sensitivity Level (MSL) 1. The ACDL1V/ACDL2V inductors are RoHS-compliant, paraben-free, halogen-free, and AEC-Q200 qualified. Typical applications include automotive 12V/24V/48V bidirectional DC/DC converters, EV battery chargers, on-board-chargers, and xEV electrical systems (multiple phases).

Features

  • AEC-Q200 qualified
  • Shielded construction
  • Dual inductors in a single package
  • Low loss and low DCR
  • High-frequency operation
  • Moisture Sensitivity Level (MSL) 1
  • Paraben-free, Halogen-free, and RoHS compliant
  • ACDL1V:
    • Alloy powder core material
    • -55°C to 155°C operating temperature range
  • ACDL2V:
    • -40°C to 125°C operating temperature range
    • Ferrite core material

Applications

  • Automotive 12V/24V/48V bidirectional DC/DC converters
  • EV battery chargers
  • On-board-chargers
  • xEV electrical systems (multiple phases)

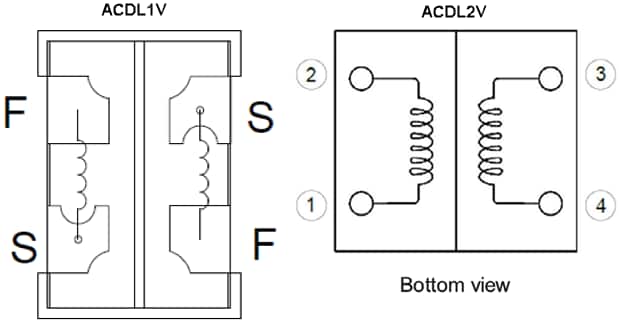

Schematic Diagram

Schematic - Eaton ACDL1V/ACDL2V Automotive Class D Audio inductors
