Eaton 1K0967 HFA In-Line Waterproof Fuse Holders

Eaton 1K0967 HFA In-Line Waterproof Fuse Holders are in-line fuse holders for 1/4-inch x 1-1/4-inch ferrule fuses. These fuse holders feature up to 20A and 250V current ratings with an IP54 rating for exposed locations, high temperature, and flame retardant. The 1K0967 HFA fuse holders are RoHS-compliant and UL-recognized.

Features

For 1/4inch x 1-1/4inch (6.35mm x 31.8mm) fuses
IP54 rating for exposed locations
Accepts #16 to #12 copper wire
Copper crimp lead material
High temperature, flame retardant, and phenolic meets UL 94 HB
Crimp or 1/4” quick connect terminals

In-line connection
Recommended crimp tools:
- Thomas and Betts – ERG4002
- Channellock No. 909
- Thomas and Betts WT-112M
RoHS compliant

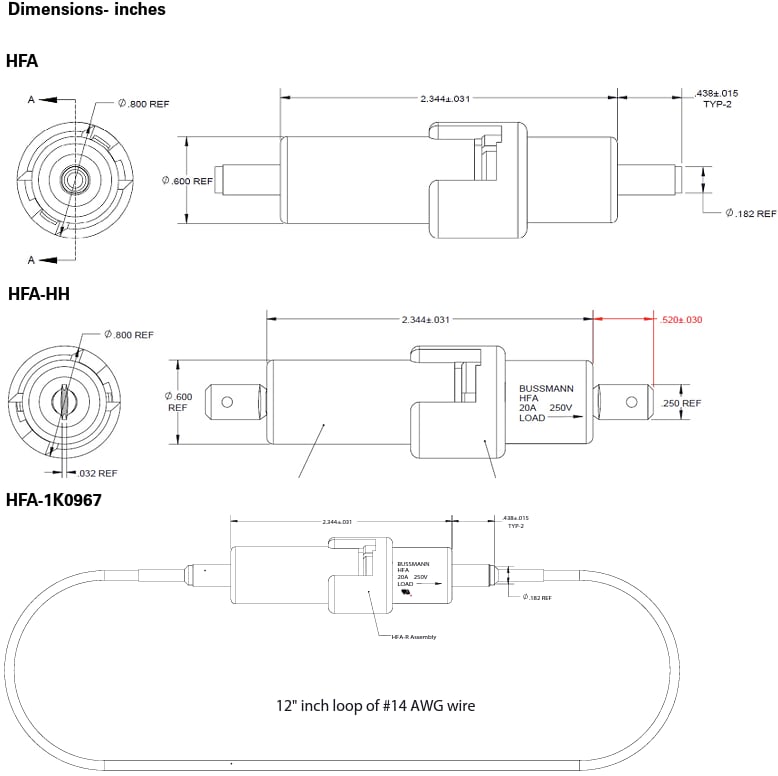

Dimension Diagram

Eaton 1K0967 HFA In-Line Waterproof Fuse Holders
