EAO Series 84 IO-Link Touch Switches

EAO Series 84 IO-Link Touch Switches are freely configurable, bright, and capacitive switches that up human-machine interface (HMI) possibilities for a wide range of industrial applications. The EAO Series 84 IO-Link Touch offers ambient light adaptive RGB LED illumination in 16 million colors and capacitive actuation with different actuation sensitivities. The series provides optionally illuminated standard or custom symbols. Series 84 IO-Link Touch offers an IP rating of up to IP69K with IK08 shock resistance.

Features

Freely configurable HMIs with IO-Link interface (Industry 4.0)
Optionally illuminated standard or custom symbols
IP rating to IP69K with IK08 shock resistance
Short-circuit and overload protection
Easy industry-standard M12 connection

Ambient light adaptive RGB LED illumination in 16 million colors
Capacitive actuation with different actuation sensitivities
Adjustable PNP/NPN, NO/NC output
Adjustable output pulse duration
Reverse polarity protection of all lines

Applications

Factory automation
Industrial controls
Material handling

Food and beverage processing
Packaging equipment
Autonomous robotics

Specifications

24V_DC (8.4V to 32V) operating voltage
200mA maximum load current
5V at 200mA maximum voltage drop

40mA at 24V maximum current consumption
-30°C to +65°C operating temperature range

EAO Series 84 IO-Link Touch Switches

Features

Applications

Specifications

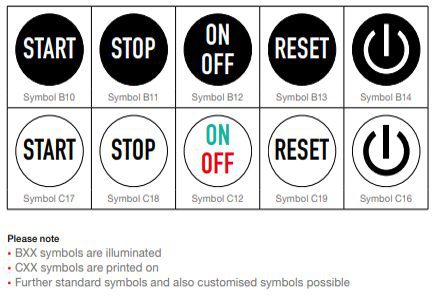

Standard Symbols
