EAO Series 82 Momentary Pushbutton Switches

EAO Series 82 Momentary Pushbutton Switches are resistant to vandalism and sealed for use in harsh environments. The EAO Series 82 Monetary Pushbutton Switches feature robust stainless steel, brass, or anodized aluminum housings and are protected according to IK10 impact resistance and IP65/IP67 sealing requirements. This protection makes the switches ideally suited for exposed public use and industrial applications. These switches are available with momentary or maintained action and with or without LED illumination. Options include single or bi-color LEDs and central dot or modern ring illumination. The series includes an overmolded option and M12 connector.

Features

Vandal-resistant
- Impact-resistant to IK10
- Front protection up to IP65/IP67
Gold-plated silver contacts for low voltages and currents
Includes an overmolded option and M12 connector

Optional single or bi-color LED illumination and laser markings, 24V_DC illuminated versions available with red, green, white, or blue LED
Excellent tactile feedback
>1 million cycles of operation

Applications

Ticketing and vending machines
Machinery and factory equipment
Food and beverage
Elevators and people movers
Access control and security systems

Audio and video equipment
Medical equipment
Heavy duty and special vehicles
Buses and coaches
Marine

Specifications

Silver contacts
- 17V_AC/DC minimum voltage
- 240V maximum voltage
- 50mA minimum current
- 3A maximum current

Gold-plated silver contacts
- 1V_AC/DC minimum voltage
- 24V maximum voltage
- 5mA minimum current
- 200mA maximum current

EAO Series 82 Momentary Pushbutton Switches

Features

Applications

Specifications

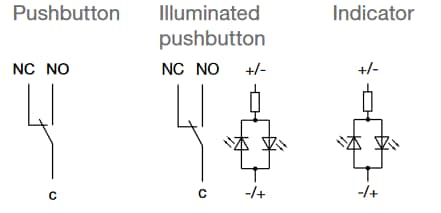

Wiring Diagram
