E-Switch TL6155 Tactile Switches

E-Switch TL6155 Tactile Switches are tact switches with IP67 dust/moisture protection and designed for up to 300,000 cycles of life expectancy. The E-Switch TL6155 Tactile Switches provide a right-angle surface mount design and a 50mA, 32V_DC contact rating. Applications include audio/visual, computer peripherals, and consumer electronics.

Features

Up to 300,000-cycle life expectancy
IP67 environmental ratings
Right-angle surface mount design

Applications

Audio / visual
Computer peripherals
Consumer electronics

Instrumentation
Medical equipment
Telecommunication

Specifications

50mA, 32V_DC contact rating
100mΩ maximum (initial) contact resistance
10MΩ minimum insulation resistance at 100V_DC
250V_AC dielectric strength for 1 minute

-40°C to +85°C operating temperature range
350gf ± 100gf (300,000 cycles) operating force
0.5mm travel
SPST, Off-(On) function

Videos

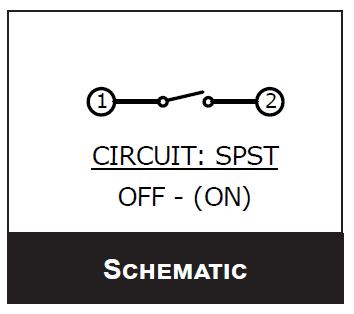

Schematic

Schematic - E-Switch TL6155 Tactile Switches
