E-Switch SV4 19mm Short Body Anti-Vandal Switches

E-Switch SV4 19mm Short Body Anti-Vandal Switches are short-body behind-panel switches that save space for compact designs. E-Switch SV4 Anti-Vandal Switches feature the popular 19mm panel cut-out size. The IP67 moisture rating makes SV4 switches ideal for harsh-environment applications. These 2A, 36V_DC pushbutton switches offer a variety of illumination options and are ideal for use in audio visual, medical, and industrial control applications.

Features

Short-body design
19mm panel cutout diameter
Multiple LED options
Ring or ring/power symbol illumination available

IP67 rated
Single-pole, single-throw (SPST)
Soldered wire leads (500mm long) optional

Applications

Audio visual
Medical
Industrial controls

Security
Kiosks
Electrical housewares

Specifications

2A, 36V_DC electrical rating
200,000 cycles electrical life
50mΩ maximum contact resistance at 1A, 12V_DC
2000V_RMS dielectric strength at sea level
-20°C to +70°C operating temperature range

1.80mm travel
4.5N actuation force
1mm to 6mm panel thickness
1Nm to 3Nm mounting nut torque

E-Switch SV4 19mm Short Body Anti-Vandal Switches

Features

Applications

Specifications

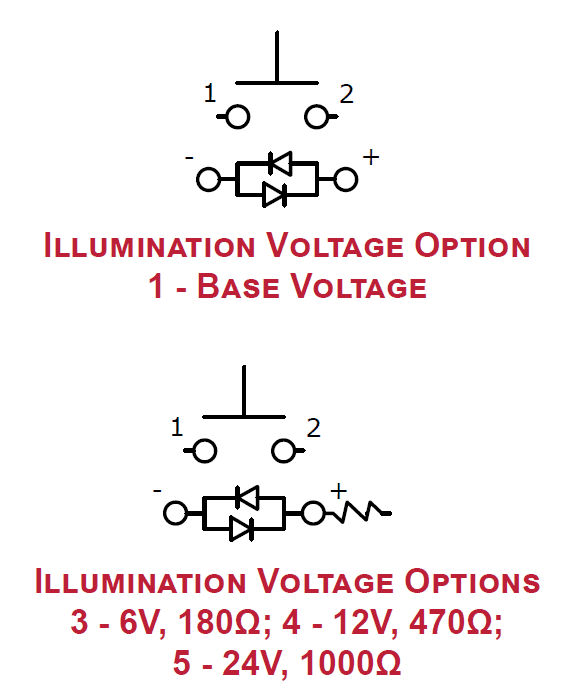

Schematic
