E-Switch RT1105 Reverse Through-hole Mounted Tact Switches

E-Switch RT1105 Reverse Through-hole Mounted Tact Switches provide multiple gram force options identified by 160gf (red), 260gf (dark gray), and 350gf (blue) color actuators. These tact switches operate at -20°C to 85°C temperature range, 50mA contact rating at 12VDC, 250VAC dielectric strength for 1 minute, and 0.25mm travel. The RT1105 reverse through-hole mounted switches are available in tray packaging. These switches are used in applications such as audio/visual equipment, computer electronics, computer peripherals, telecommunication devices, medical equipment, and test/instrumentation equipment.

Features

Tray packaging
Multiple gram force options:
- 160gf (red)
- 260gf (dark gray)
- 350gf (blue)

440mm actuator height
100,000 cycles electrical life
Top actuated reverse through-hole mounted

Specifications

50mA, 12V_DC contact rating
250V_AC dielectric strength for 1 minute
Up to 10ms bounce
100MΩ insulation resistance at 100V_DC

-20°C to 85°C operating temperature range
SPST Off – (On) contact arrangements
Up to 100mΩ initial contact resistance

Applications

Audio/visual equipment
Computer peripherals
Computer electronics

Medical equipment
Test and instrumentation equipment
Telecommunication devices

E-Switch RT1105 Reverse Through-hole Mounted Tact Switches

Features

Specifications

Applications

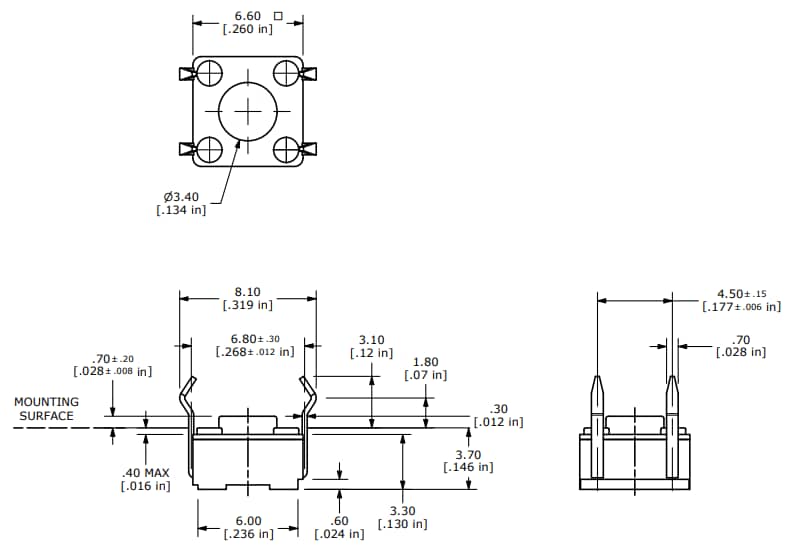

Dimensions Diagram
