E-Switch RB5 Rocker Switches

E-Switch RB5 Rocker Switches are designed with high reliability and high current ratings. The switches offer five electrical ratings with IP67-rated ingress protection. The E-Switch RB5 Rocker Switches feature dual illumination in five colors and eight marking options. The RB5 series provides a 22mm x 30.2mm industry-standard cutout for front-panel mounting. The switches perform two-pole maintained or momentary functions. The RB5 Rocker Switches are ideal for floor care appliances, electrical housewares, medical/dental equipment, industrial controls, commercial appliances, and instrumentation applications.

Features

  • High reliability
  • High current ratings
  • Five electrical ratings available
  • IP67 rating
  • Dual illumination, available in five colors
  • Eight marking options
  • 22mm x 30.2mm industry-standard cutout size
  • Two-pole maintained or momentary functions
  • cURus and ENEC15 approved

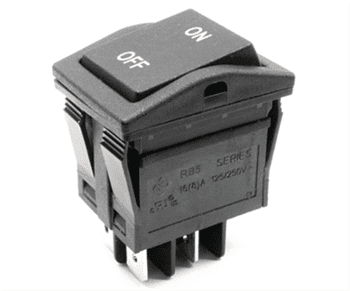

Chart - E-Switch RB5 Rocker Switches

Applications

  • Floor care appliances
  • Electrical housewares
  • Medical and dental equipment
  • Industrial controls
  • Commercial appliances
  • Instrumentation

Specifications

  • 0°C to +55°C operating temperature range
  • 16A to 20A current rating
  • Up to 10,000 electrical life cycles
  • 20mΩ max contact resistance at 50VAC initial
  • 100MΩ min insulation resistance at 500VDC
  • 1000VAC dielectric strength

Product Overview

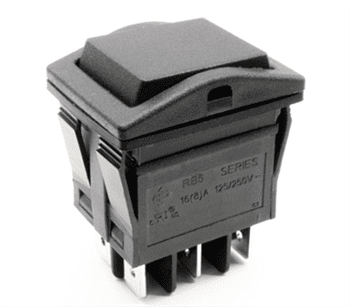

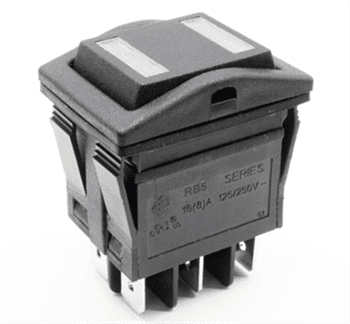

Chart - E-Switch RB5 Rocker Switches

Chart - E-Switch RB5 Rocker Switches

Chart - E-Switch RB5 Rocker Switches

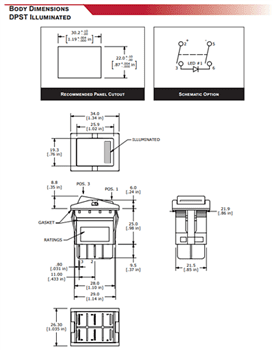

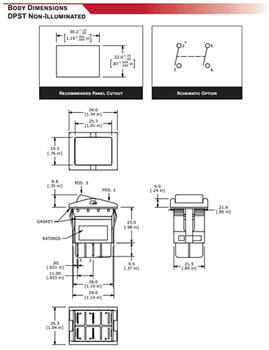

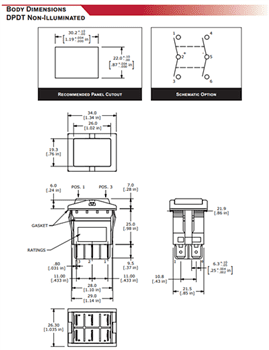

Dimensions

Chart - E-Switch RB5 Rocker Switches

Chart - E-Switch RB5 Rocker Switches

Chart - E-Switch RB5 Rocker Switches
