E-Switch PVB3 Anti-Vandal Switches

E-Switch PVB3 Anti-Vandal Switches provide durability and security in a sleek and modern package. The E-Switch PVB3 features a 16mm panel cutout, an IP65 environmental rating, momentary or latching functions, and optional ring/power symbol illumination. These anti-vandal switches offer multiple LED color options for further customization. The switches are designed for commercial appliances, security devices, industrial controls, and more.

Features

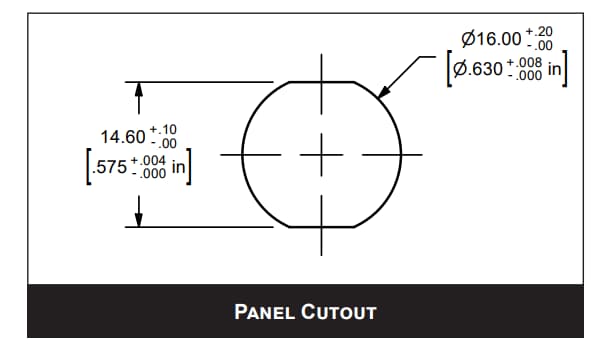

16mm panel cutout
Ring illumination option
Multiple LED color options

IP65 rated moisture protection
Momentary or latching functions

Applications

Kiosks
Electrical housewares
Security devices

Commercial appliances
Medical equipment
Industrial controls

Specifications

Electrical ratings
- 2A, 24V_DC
- 0.5A, 220V_AC
Mechanical life
- 1 million cycles (momentary) mechanical life
- 500,000 cycles (latching)
50,000 cycles electrical life
50mΩ maximum contact resistance
1000MΩ minimum insulation resistance at 500V_DC

1500V_AC dielectric strength
-25°C to +55°C operating temperature range
3.0mm travel
Single-pole, double-throw (SPDT) contact arrangement
2.5N actuation force
1mm to 7mm panel thickness

E-Switch PVB3 Anti-Vandal Switches

Features

Applications

Specifications

Application Examples

Dimensions

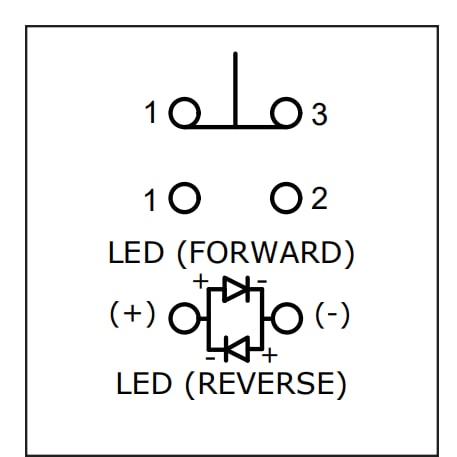

LED Schematic
