E-Switch PMV6 Anti-Vandal Switches

E-Switch PMV6 Anti-Vandal Switches are switches for 16mm panel cutouts featuring multiple cap color options and up to 10,000 cycles of life expectancy. E-Switch PMV6 Anti-Vandal Switches provide standard wire leads (UL3385 20AWG pre-stripped and tinned) and a crisp tactile response. The series is rated IP67 for moisture and dust protection and features multiple function options with a 2A, 24VDC contact rating. Applications include security devices, electrical housewares, consumer electronics, and more.

Features

  • 16mm panel cutout
  • UL3385 20AWG pre-stripped and tinned wire leads
  • Multiple cap colors
  • 10,000-cycle electrical life
  • Crisp tactile response
  • IP67 moisture protection

Applications

  • Consumer electronics
  • Security devices
  • Industrial controls
  • Kiosks
  • Electrical housewares
  • Medical equipment

Specifications

  • 2A, 24VDC electrical rating
  • 100mΩ maximum contact resistance (initial value) at 1A/12VDC
  • 10MΩ minimum insulation resistance at 500VDC
  • 500Vrms dielectric strength at sea level
  • -20°C to +65°C operating temperature range
  • 1.5mm travel
  • 7N ±2N actuation force
  • 1mm to 7mm panel thickness
  • 0.5Nm to 1Nm maximum mounting nut torque
  • Contact arrangements
    • SPST On-(On)
    • SPST Off-(On)
    • SPST On-(Off)

Resources

  • Datasheet
  • Product Announcement

Schematics

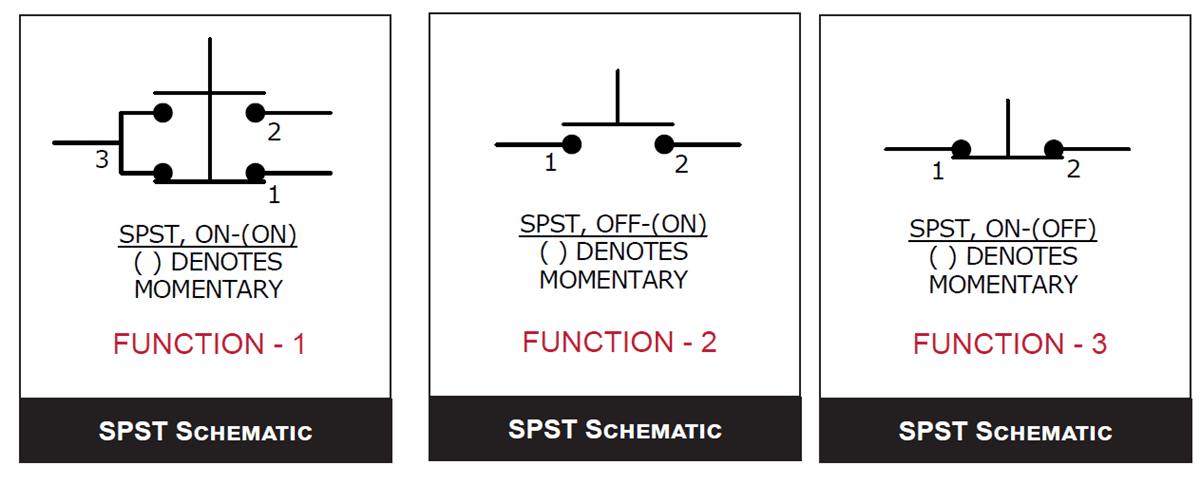

Schematic - E-Switch PMV6 Anti-Vandal Switches
