E-Switch KAG Series DIP Switches

E-Switch KAG Series DIP Switches offer reliability and versatility with a low-profile design, gold contacts, and up to 12 positions. These gullwing (SMT) switches are available with an SPDT contact arrangement for each position and all poles in the “off” position. The series features an electrical rating of 100mA at 50V_DC for non-switching and 25mA at 24V_DC for switching. Each circuit offers a life expectancy of 1000 cycles with 0.9mm of travel, and actuators include extended or recessed with an optional top tape seal. E-Switch KAG Series DIP Switches have an operating and storage temperature range of -40°C to +105°C. Ideal applications include audio / visual, medical equipment, computer peripherals, consumer electronics, telecommunications, and instrumentation.

Features

Gullwing (SMT) termination option
Low profile
Tube or tape-and-reel packaging options
Recessed actuator available with top tape seal option

Gold contacts
Switches are supplied with all poles in “off” position
SPDT contact arrangement for each position
RoHS compliant

Applications

Audio / visual
Medical equipment
Computer peripherals

Consumer electronics
Telecommunications
Instrumentation

Infographic - E-Switch KAG Series DIP Switches

Specifications

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, or 12 positions
0.9mm travel in each direction
Electrical rating
- 100mA at 50V_DC non-switching
- 25mA at 24V_DC switching

50mΩ maximum contact resistance
100MΩ minimum insulation resistance at 500V_DC
500V_AC dielectric strength for 1 minute
1000-cycle life expectancy for each circuit
-40°C to +105°C operating and storage temperature range

E-Switch KAG Series DIP Switches

Features

Applications

Specifications

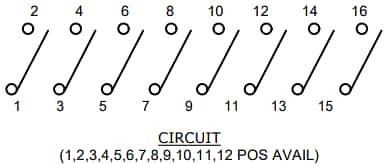

Schematic

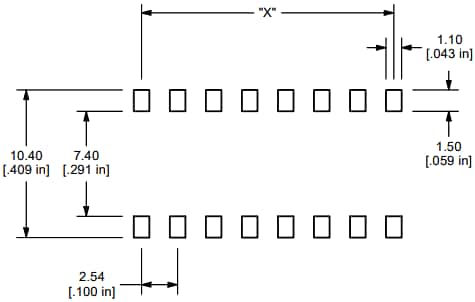

Surface-Mount PCB Layout

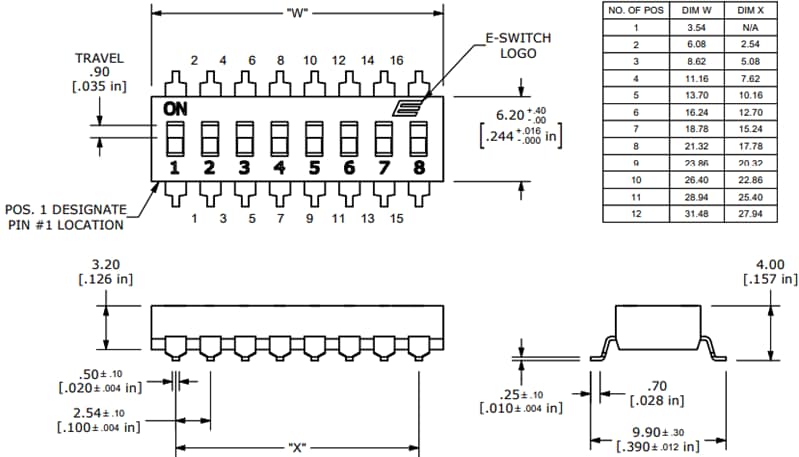

Dimensions
