e-peas AEM30940 Evaluation Board

e-peas AEM30940 Evaluation Board provides a demonstration and development platform for the AEM30940 RF Energy Harvesting IC. The AEM30940 is an integrated Ambient Energy Manager (AEM) that can extract DC power from a piezo generator, a microturbine generator, or any other high-frequency 868MHz or 915Mhz RF input, simultaneously storing energy in a rechargeable element and supplying the system with two independent regulated voltages.

The AEM30940 Evaluation Board includes a pre-mounted AEM30940 IC in a QFN28 package, along with all the needed support components and jumpers to configure the device.

The AEM30940 Evaluation Board allows users to test the e-peas AEM30940 and analyze its performances in a laboratory-like setting. It allows easy connections to the energy harvester, the storage element, and the low-voltage and high-voltage loads. It also provides all the conﬁguration access to set the device in any one of the modes described in the datasheet. The control and status signals are available on standard pin headers, allowing users to wire for any usage scenario and evaluate the relevant performance.

Features

Five two-way screw terminals
- Source of energy (DC)
- Source of energy (low-frequency AC)
- Low-voltage load
- High-voltage load
- Primary energy storage element
One three-way screw terminal
- Energy storage element (battery or supercapacitor)
One 2-pin ”Shrouded Header”
- Alternative connection for the storage element
Two 2-pin headers
- Primary battery configuration

Eight 3-pin headers
- Maximum power point (MPP) configuration
- Low drop-out regulators (LDOs) enabling
- Energy storage elements and LDOs configuration
- Dual-cell supercapacitor configuration
Provision for nine resistors
- Custom mode configuration
- ZMPP configuration
- Primary battery configuration
Three 1-pin headers
- Access to status pins
76mm x 50mm PCB dimensions

e-peas AEM30940 Evaluation Board

Features

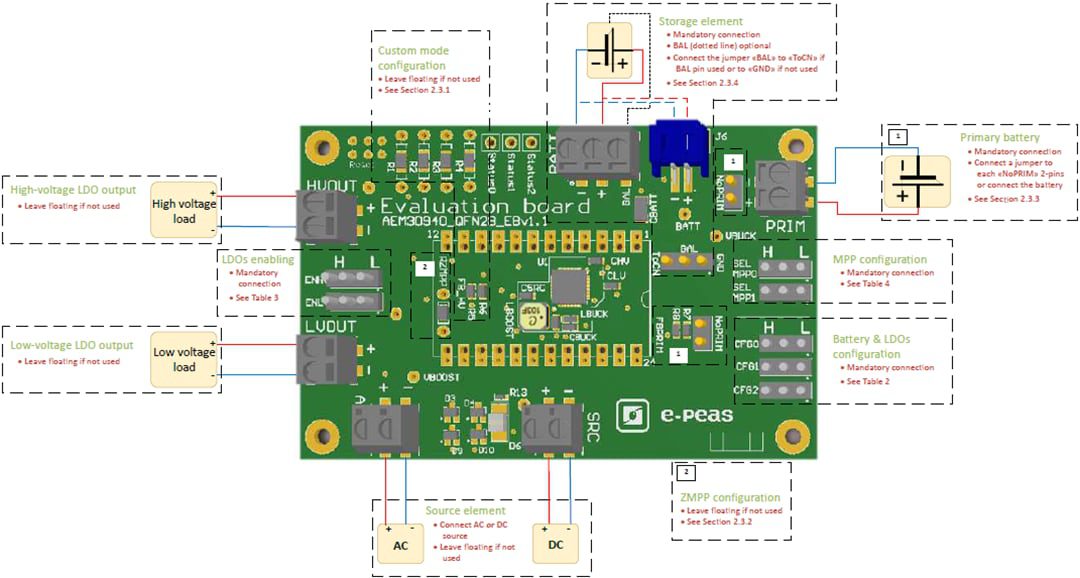

Board Layout
