Dura-Con / Cinch Connectivity Solutions Dura-Con™ Micro-D Jumper Assemblies

Dura-Con/Cinch Connectivity Solutions Dura-Con™ Micro-D Jumper Assemblies are designed for rugged, high-performance, and densely compacted interconnect applications. These assemblies feature 0.05-inch (1.27mm) pitch connectors, 7 points of contact twist pins, and plug-to-plug, socket-to-socket, and plug-to-socket options. The Dura-Con micro-D jumper assemblies are compliant with MIL-DTL-83513. These assemblies are ideal for system-to-system communication, internal system communication, extension for existing cables, and patch and test cables.

Features

7 points of twist pin contacts and machined sockets for durable
MIL-STD-83513 compliant micro-d connectors
Both ends of the wire length are pre-terminated, eliminating the need for additional processing

Plug to plug, socket to socket, and plug to socket options
18-inch and 36-inch wire lengths are standard, but additional lengths are available

Applications

System-to-system communication
Internal system communication
Extension for existing cables
Patch and test cables

Miniaturized military
Aerospace electronics
Data processing equipment

Dura-Con / Cinch Connectivity Solutions Dura-Con™ Micro-D Jumper Assemblies

Features

Applications

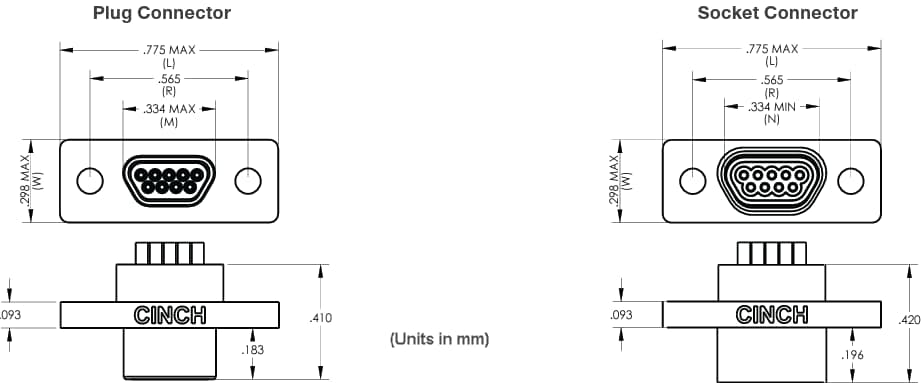

Dimension Diagram
