DISPLAY VISIONS EA DIP205 Text Displays

DISPLAY VISIONS EA DIP205 Text Displays have a high-contrast LCD supertwist display and various interfaces for seamless connectivity. The DISPLAY VISIONS EA DIP205 features a controller RW1073-0B compatible with SSD1803. The displays offer an interface for 4- and 8-bit data buses and a serial SPI interface (SID, SOD, SCLK) for added versatility. With a power supply of +3.3V/1.5mA (with or without B/l) or +5V (with only 2 component changes).

Features

High-contrast LCD supertwist display
Interface for 4- and 8-bit data BUS
Serial SPI interface (SID, SOD, SCLK)
Power supply +3.3V/1.5mA (with or without B/l)
Alternatively +5V (need to change two components)
LED backlight Y/G max. 150mA@+25°C
LED backlight blue-white and black-white max. 45mA@+25°C

Operating temperature range -20°C to+70°C
Built-in temperature compensation
Modules with the same size and same pinout
- Dot-matrix 1×8, 2×16
- Graphic 122×32
No screws are required; solder onto PCB only
Detachable via 9-pin socket EA B200-9 (2 pcs required)

DISPLAY VISIONS EA DIP205 Text Displays

Features

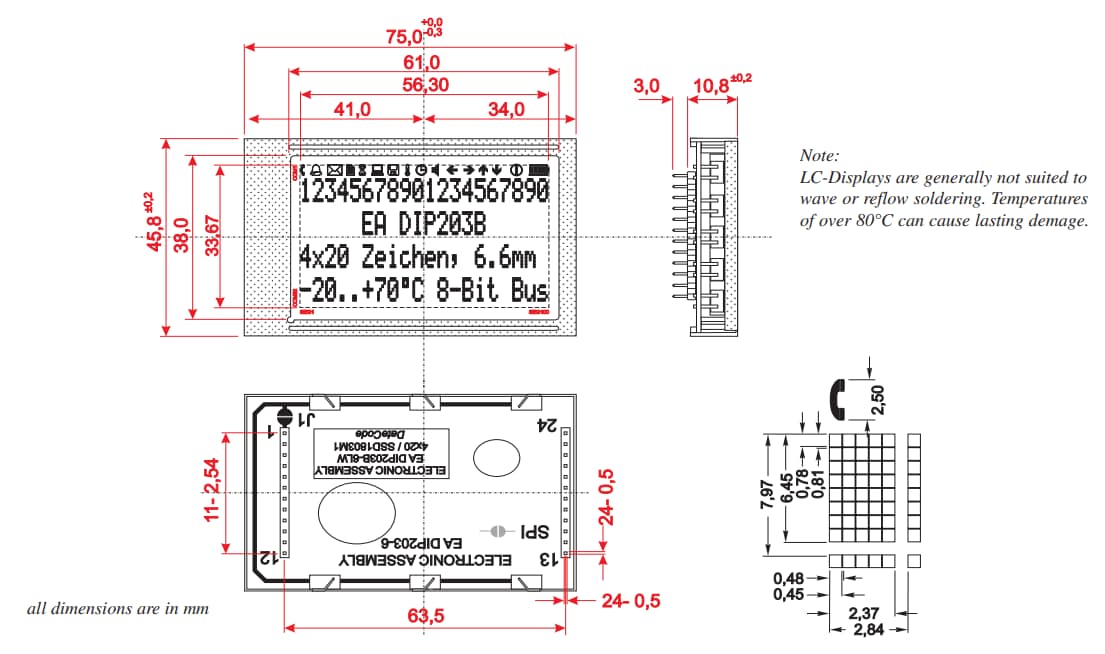

Dimensions
