DISPLAY VISIONS DEMOPACK-CONNI Demonstration Kit

DISPLAY VISIONS DEMOPACK-CONNI Demonstration Kit includes a smart touch 2.8″ display and a board with many level shifter components. The display provides 3.3V level at all in- and outputs with the option to adapt to a 5V system. The application board provides a level shifter for ±12V level (for PC).

The DISPLAY VISIONS smart 2.8″ miniature touch panel is implemented to replace physical switches and controllers in home automation, as well as control panels in caravans or integration into kitchen appliances. The RS-485 driver chip allows a direct connection to any RS-485 bus or RS-422. An onboard voltage regulator allows supply voltages from 5V to 30V.

Features

2.8” Smart touch display, IPS technology
PCAP Touchpanel optically bonded
Super bright >1000cd/m²
High contrast TFT panel
Integrated HMI Controller
USB, RS-232, SPI, I²C interface

WYSIWYG Editor for windows
Wide temperature range (-20°C to +70°C)
Industrial grade display
Level Shifter for I²C, SPI, RS-232, RS-485/422
Power supply of 5V to 30V

Kit Contents

Smart touch 2.8″ display with PCAP
Application board with many level shifter components

DISPLAY VISIONS DEMOPACK-CONNI Demonstration Kit

Features

Kit Contents

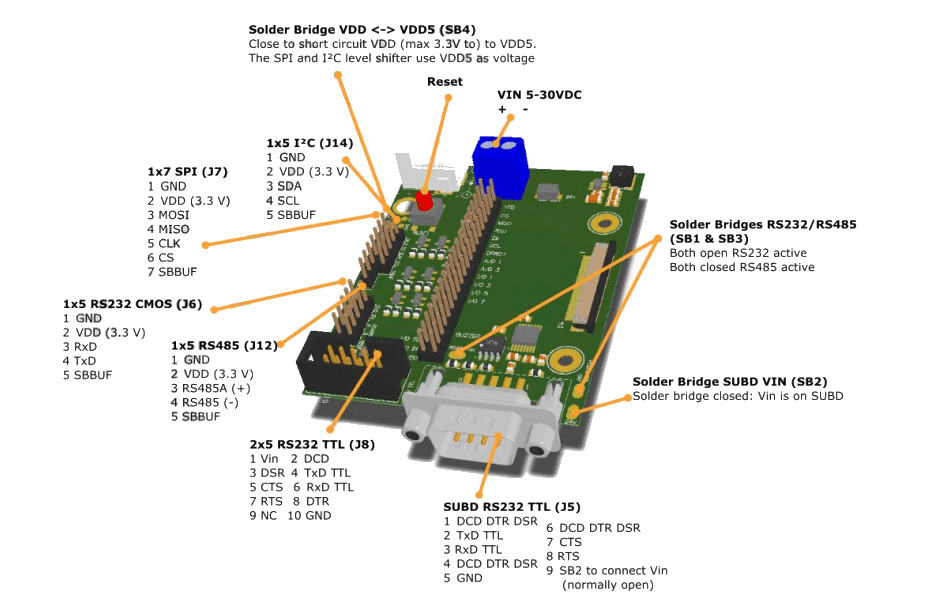

Connection Overview

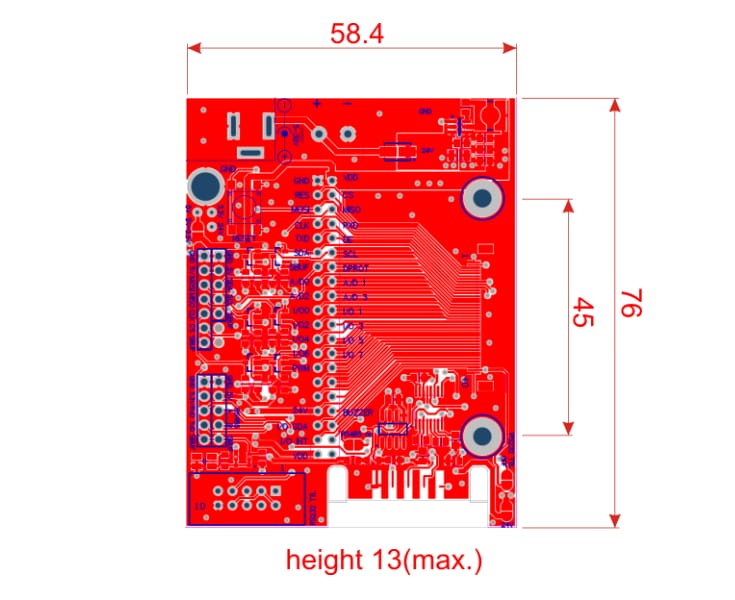

Dimensions (mm)
