Diptronics DTS(G)-6 Series Tactile Switches

Diptronics DTS(G)-6 Series Tactile Switches are 6mm x 6mm compact size switches that offer 50mA and 12V_DC contact ratings. These switches feature cap options and offer a sharp tactile feeling. The DTS(G)-6 switches operate at the -25°C to 70°C temperature range and are stored at the -30°C to 80°C temperature range. These tactile switches feature 250V_AC per minute dielectric strength and offer 100mΩ maximum contact resistance. The DTS(G)-6 switches are halogen-free and RoHS compliant. These switches are ideal for audio and OA equipment, instrumentation, and industrial applications.

Features

Halogen free
RoHS compliant
Cap options

Sharp tactile feeling
Compact size

Specifications

50mA and 12VDC contact rating
100mΩ maximum contact resistance
100MΩ minimum insulation resistance @ 500V_DC
250V_AC per minute dielectric strength
Operating force:
- 70±30gf, Blue
- 100±50gf, Black(K)160±50gf, Brown(N)
260±50gf, Red(R)
- 320±80gf, Salmon(S)
- 520±130gf, Yellow(Y)
6mm x 6mm dimensions
0.25mm travel

Operating cycles:
- Phosphor bronze dome:
  - 50000 cycles for 520/320gf
  - 100000 cycles for 260gf
  - 200000 cycles for 160/100/70gf
- Stainless steel dome:
  - 300000 cycles for 520/320gf
  - 500000 cycles for 260gf
  - 1000000 cycles for 160/100/70gf
-25°C to 70°C operating temperature range
-30°C to 80°C storage temperature range

Applications

Audio and OA equipment
Instrumentation
Industrial

Diptronics DTS(G)-6 Series Tactile Switches

Features

Specifications

Applications

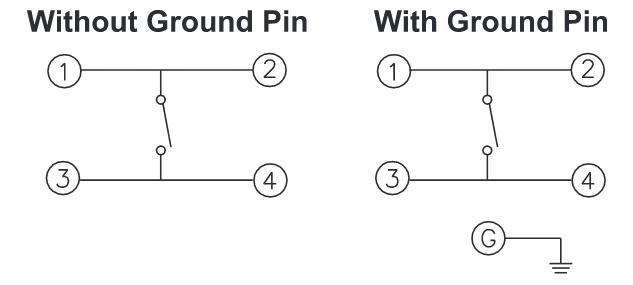

Circuit Diagram
