Diotec Semiconductor P4SMA Transient Voltage Suppressors

Diotec Semiconductor P4SMA Transient Voltage Suppressors feature uni- and bi-directional versions, 400W of peak pulse power dissipation, and fast response time. These diodes are compliant with RoHS, REACH, and conflict materials, and P4SMA diodes with the -AQ suffix are AEC-Q101 qualified. Diotec Semiconductor P4SMA ESD suppressors are ideally used in over-voltage protection, ESD protection, free-wheeling diodes, commercial/industrial, and automotive-grade applications.

Features

  • Uni- and bi-directional versions
  • 400W peak pulse power dissipation (10µs/1000µs waveform)
  • Very fast response time
  • Suffix –AQ for AEC-Q101 qualification
  • Compliant with RoHS, REACH, and conflict materials
  • -50°C to 150°C storage temperature range

Applications

  • Over-voltage protection
  • ESD protection
  • Free-wheeling diodes
  • Commercial grade

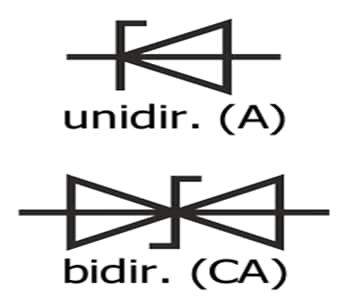

Uni- And Bi-Directional Symbols

Diotec Semiconductor P4SMA Transient Voltage Suppressors
