Diotec Semiconductor LDI8233xxEN LDO Fixed Voltage Regulators

Diotec Semiconductor LDI8233xxEN Low Dropout (LDO) Fixed Voltage Regulators are LDO voltage regulators with a 40V input voltage and a 100mA output current. These devices are available in 3V, 3.3V, 5.0V, and 12V fixed output voltages with a ±1% tolerance. The typical dropout voltage is 0.12V (I_OUT=10mA), 0.58V (I_OUT=50mA), and 1.2V (I_OUT=100mA). The Diotec Semiconductor LDI8233xxEN is ideal for high-efficiency linear regulators, active SCSI termination regulators, post regulators for switch modes, DC-DC converter applications, and more.

Features

Low Dropout Voltage (LDO)
- 120mV at 10mA output current
ON/OFF function – ‘Enable’ (EN)

Low power consumption
Fixed voltages of 3V, 3.3V, 5.0V, and 12V available
Thermal overload protection

Applications

High-efficiency linear regulators
Active SCSI termination regulator
Post regulators for switch mode

DC-DC converters
Battery backed-up regulated supply
Electricity meters/smart-meters

Diotec Semiconductor LDI8233xxEN LDO Fixed Voltage Regulators

Features

Applications

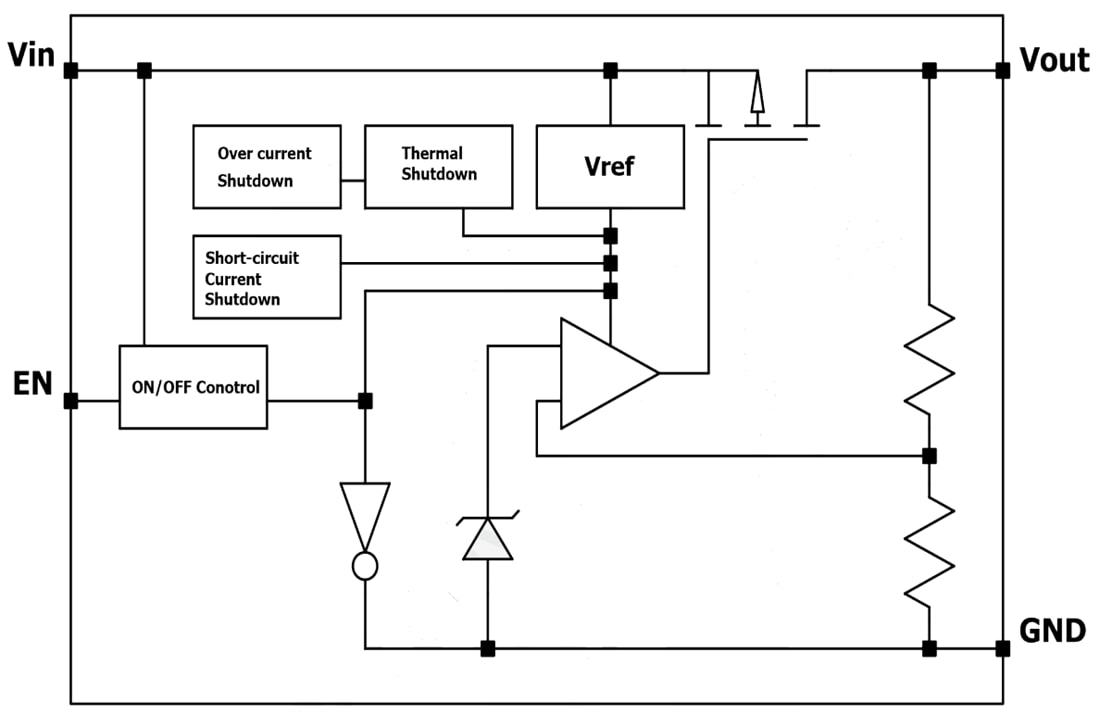

Block Diagram
