Diodes Incorporated PSMUX136 High-Bandwidth Dual 2:1 Ch Multiplexer

Diodes Incorporated PSMUX136 High-Bandwidth Dual 2:1 Ch Multiplexer utilizes high-speed signals with a bandwidth of 5.5GHz. The 2-to-1 differential channel multiplexer/demultiplexer switch offers excellent signal integrity and an eye diagram opening. The Diodes PSMUX136 Mux/DeMux features a wide input voltage range from 0 to 3.6V and a low power consumption of 35µA. The device is ideal for smartphones, tablets, NBs, and PCs.

Features

Differential bi-directional 2:1 Mux/DeMux
Wide input voltage range of 0 to 3.6V
High-performance switch characteristics:
- Bandwidth (-3dB): 5.5GHz (A Port); 5.3GHz (B Port)
- R_ON (typical): 4.6Ω (A Port); 5.7Ω (B Port)
- C_ON (typical): 1.5pF at 240MHz
Low propagation delay of 0.1ns typical
Low off-isolation of -34dB at 240MHz
Low crosstalk of -37dB at 240MHz

Low power consumption of 35µA typical
Wide supply voltage of 1.8V to 5.5V
Supports 1.8V logic on control pins
Wide temperature range of -40°C to +125°C
Totally lead-free and fully RoHS Compliant
Halogen and antimony-free, “green” device
10-contact, UQFN (ZUA), 1.5mm x 2mm x 0.5mm (H) x 0.6mm pitch packaging

Applications

Smartphones
Tablets
Notebook PCs

PCs
Networking devices

Diodes Incorporated PSMUX136 High-Bandwidth Dual 2:1 Ch Multiplexer

Features

Applications

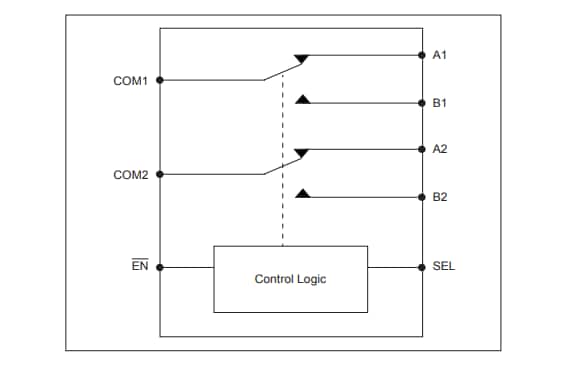

Block Diagram

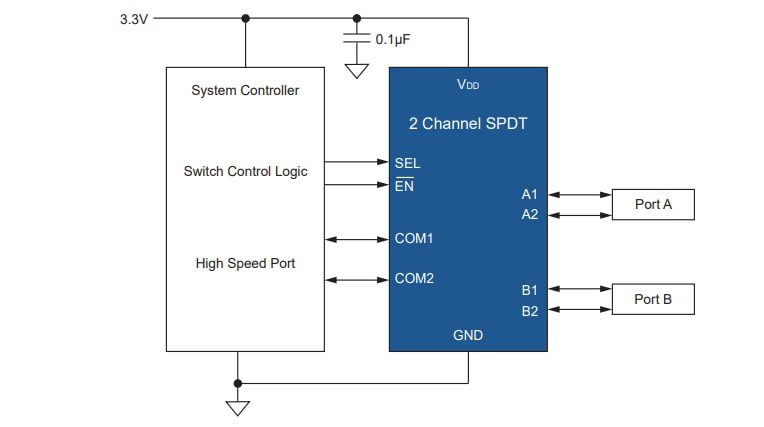

Typical Application Diagram
