Diodes Incorporated PI6CBE33123 Low-Power PCIe® Clock Buffer

Diodes Incorporated PI6CBE33123 Low-Power PCIe® Clock Buffer is a low-power PCIe 1.0/2.0/3.0/4.0/5.0/6.0 clock buffer. PI6CBE33123 takes a reference input to fan out 12 100MHz low-power differential HCSL outputs with on-chip terminations for 33Ω output impedance. The device supports zero-delay and fanout buffer functions for various applications. An individual OE pin for each output provides easier power management. A proprietary PLL design achieves very low jitter that meets PCIe 1.0/2.0/3.0/4.0/5.0/6.0 requirements. Besides PCIe 100MHz support, this device also supports 133.33MHz via a pin.

Features

12x differential low-power HCSL outputs with on-chip termination
33Ω default Z_OUT
Spread spectrum tolerant
Individual output enable
Selectable PLL bandwidths
Hardware/SMBus control of ZDB and fanout buffer modes
Up to 9x selectable SMBus addresses
1MHz to 400MHz fanout buffer operation
100MHz and 133.33MHz ZDB mode
<50ps differential output-to-output skew
3.3V core supply voltage
-40°C to +85°C ambient/junction temperature range

Very low jitter outputs
- <50ps differential cycle-to-cycle jitter
- Fanout buffer mode additive phase jitter
  - 0.012ps PCIe 6.0 CC
  - 0.02ps DB2000Q additive jitter
- ZDB mode phase jitter
  - RMS 0.01ps PCIe 6.0 CC
  - 0.14ps RMS QPI/UPI 11.4GB/s
  - RMS 0.15ps IF-UPI
64-lead, 9mm x 9mm TQFN (ZD) package
Lead-free and RoHS-compliant
Halogen- and antimony-free, green device

Diodes Incorporated PI6CBE33123 Low-Power PCIe® Clock Buffer

Features

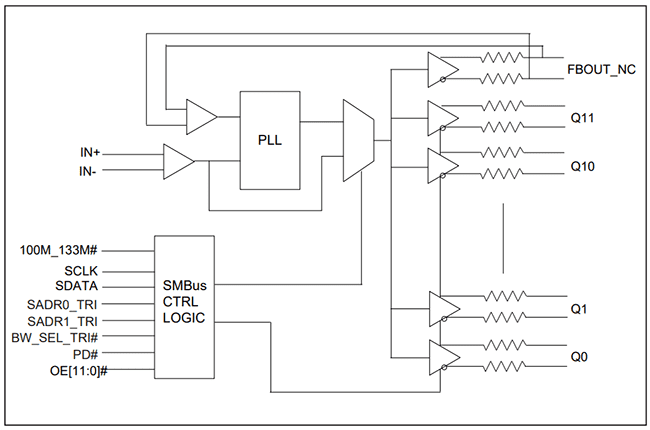

Block Diagram
