Diodes Incorporated PI3USB3031 2-Channel 1:3 Multiplexer

Diodes Incorporated PI3USB3031 2-Channel 1:3 Multiplexer is a 1:3 multiplexer with a high-speed MHL and MyDP switch and USB 2.0 high-speed switches. The Diodes Incorporated PI3USB3031 enables space-saving and connector reduction by utilizing a single USB or Micro-USB connector for MHL/MyDP signals and two sets of USB data. The MHL/MyDP path adheres to the latest MHL Rev. 3.0 specification.

Features

1.8V to 5.5V wide VCC range
Mobile High-Definition Link (MHL) or Mobility Display Port (MyDP) switch
- Bandwidth (-3dB): 6.5GHz
- R_ON (typical): 5.5Ω
- C_ON (typical): 1.3pF
USB switches (2x sets)
- Bandwidth (-3dB): 6.5GHz
- R_ON (typical): 4.5Ω
- C_ON (typical): 1pF
28µA (typical) current consumption

I_OFFprotection prevents current leakage in a powered-down state (V_CC = 0V)
1.8V compatible control inputs (SEL)
Overvoltage tolerance (OVT) on all I/O pins up to 5V without external components
2kV(HBM), 1kV(CDM) ESD protection
Totally lead-free and fully RoHS compliant
Halogen and antimony-free, green device
Packaging (Pb-free and green)
- 12-Pin, 1.8mm x 1.8mm, 0.4mm pitch (WQFN)
- 12-Pin, 1.6mm x 1.6mm, 0.4mm pitch (X2-QFN)

Applications

PC motherboards
Notebooks
Servers

Smartphones
Portable instrumentation
Digital cameras USB 2.0 MHL

Diodes Incorporated PI3USB3031 2-Channel 1:3 Multiplexer

Features

Applications

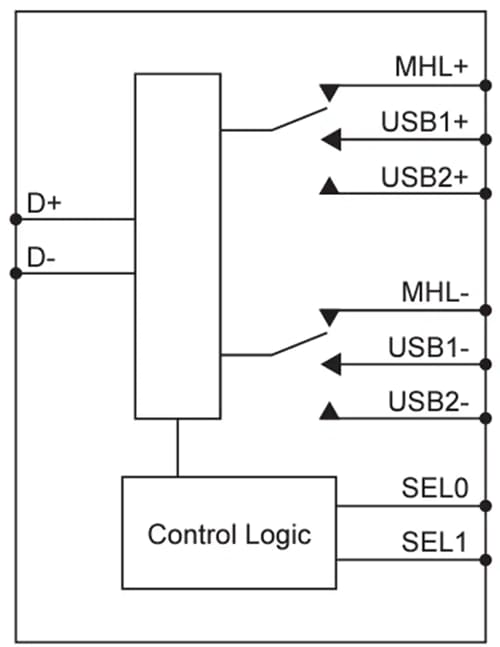

Block Diagram
