Diodes Incorporated PI3USB3000 High Speed USB 2.0 1:2 Mux/DeMux Switch

Diodes Incorporated PI3USB3000 High-Speed USB 2.0 1:2 Mux/DeMux Switch is a 2-to-1 differential channel multiplexer/demultiplexer switch in a UQFN-10 package. The switch offers D± pins that can tolerate voltages up to 9V. At 4.75V, Overvoltage Protection (OVP) is implemented to immediately switch off the channels when an overvoltage condition is detected on the device. The Diodes Inc PI3USB3000 passes USB 2.0 and MHL signals with a bandwidth of 5.5GHz to deliver excellent signal integrity and an eye diagram opening.

Features

Differential bidirectional 2:1 Mux/DeMux
Wide 0 to 3.6V input voltage range
Mobile Hi-Definition Link (MHL) switch:
- Bandwidth (-3dB) of 5.3GHz
  - R_ON (Typical) of 5.7Ω
  - C_ON (Typical) of 1.5pF at 240MHz
USB switch:
- Bandwidth (-3dB) of 5.5GHz
  - R_ON (Typical) of4.6Ω
  - C_ON (Typical) of 1.5pF at 240MHz
Low propagation delay, 0.1ns typical
-34dB at 240MHz low off-isolation
-37dB at 240MHz low crosstalk
35µA typical low power consumption

Wide 1.8V to 5.5V supply voltage
Supports 1.8V logic on control pins
Protection feature
- Power-off protection for minimizing current leakage in power-down mode
- Connector pins are high voltage tolerated D± tolerance to 9V
Overvoltage protection at D±
Wide -40°C to +85°C temperature range
Totally lead-free and fully RoHS compliant
Halogen and antimony-free “Green” device
Packaging (Pb-free and Green)
10-contact, UQFN (ZUA), 1.5x2mm, 0.5mm(H), 0.6mm pitch

Applications

Smartphones
USB-C®
Tablets

Diodes Incorporated PI3USB3000 High Speed USB 2.0 1:2 Mux/DeMux Switch

Features

Applications

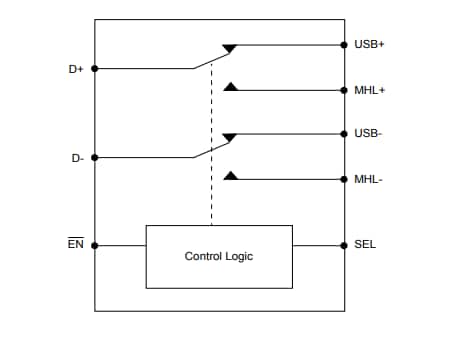

Block Diagram

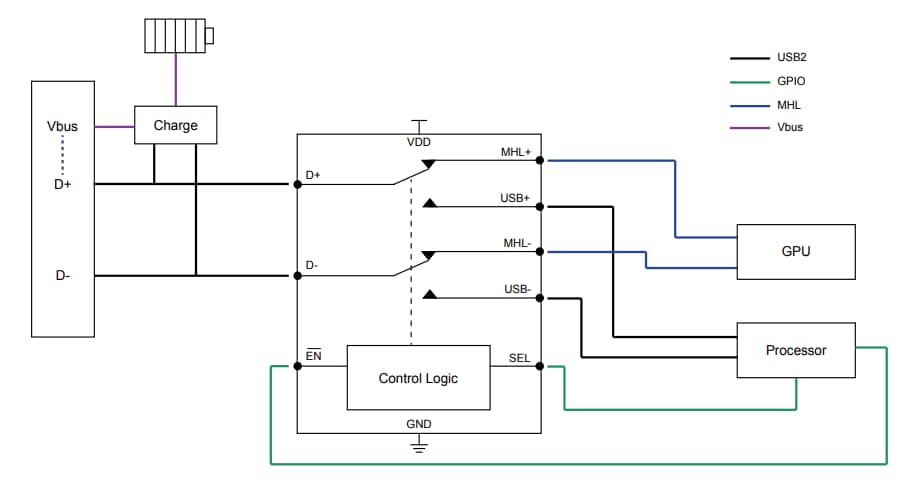

Typical Application
