Diodes Incorporated PI3HDX612 Active-Drive Signal Duplicator

Diodes Incorporated PI3HDX612 Active-Drive Signal Duplicator is designed for HDMI™ 2.0 video networks. The Diodes Incorporated PI3HDX612 converts one channel into two channels, driving signals to multiple displays. Control equalization, gain, and output swing using pins or I²C control depending on the mode select pin.

Features

1-to-2 active signal duplicator for 4-lane HDMI 2.0 operation
Data rate supports up to 6Gbps and supports 4K2K pixel resolution
Quad-level equalizer gain value selection controlled by pin strap or I²C mode programming
Quad-level flat gain and output swing linearity selection controlled by pin strap or I²C mode programming
2KV HBM ESD protection on I/O pin

3.3V single power supply
-40°C to +70°C temperature support
Totally lead-free and fully RoHS-compliant
Halogen- and antimony-free “green” device
40-pin TQFN, 3mm x 6mm (0.4mm pitch) (ZLD) packaging (Pb-free and green)

Applications

Display peripheral boxes
Digital signage displays
Multi-screen splicing

Diodes Incorporated PI3HDX612 Active-Drive Signal Duplicator

Features

Applications

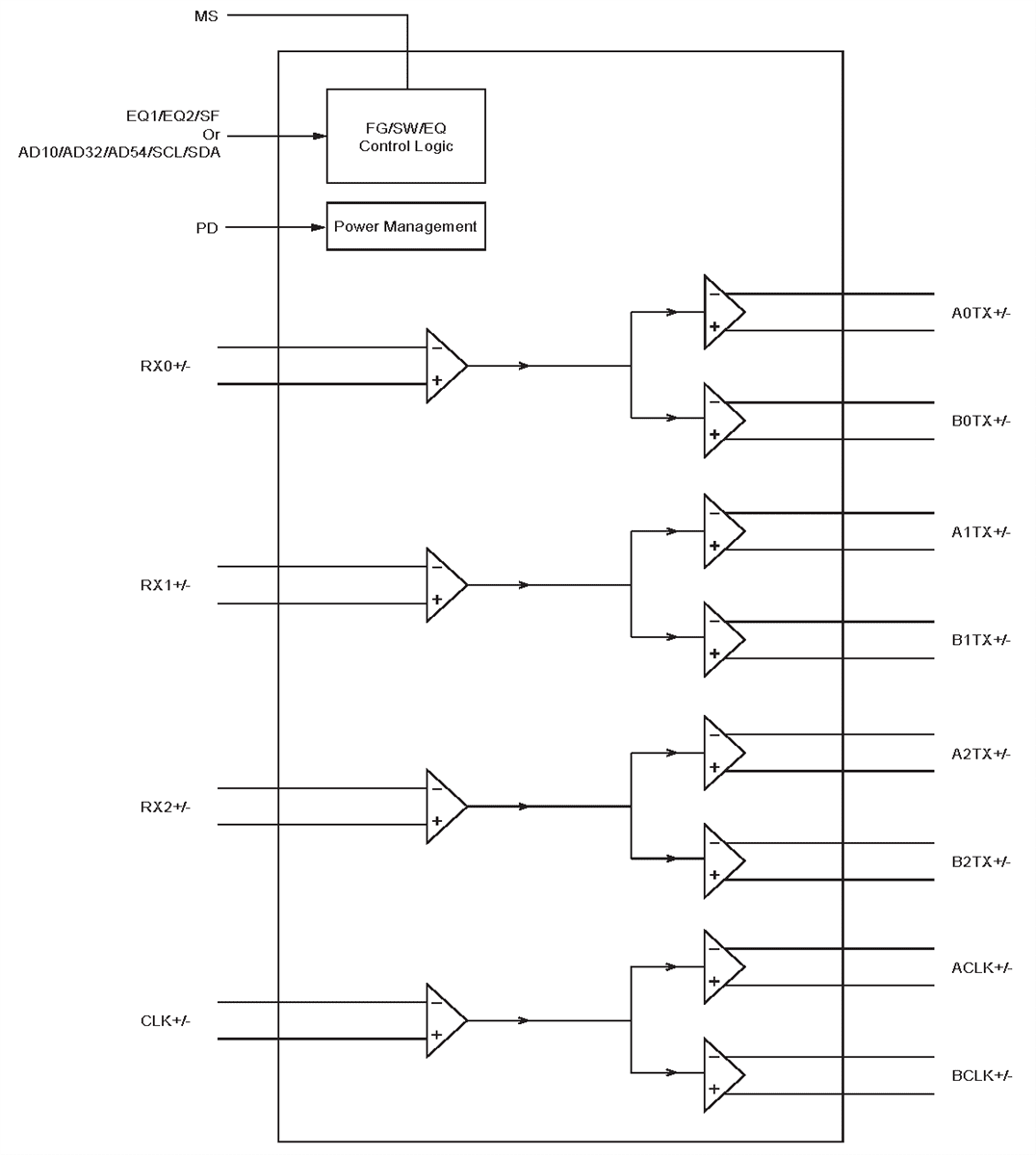

Block Diagram
