Diodes Incorporated PI2MEQX2503 CSI-2/DSI D-PHY ReDriver

Diodes Incorporated PI2MEQX2503 CSI-2/DSI D-PHY ReDriver offers two lanes and a clock MIPI D-PHY ReDriver with regeneration of the D-PHY signaling. The PI2MEQX2503 complies with the MIPI D-PHY1.2 standard and can be used in a MIPI CSI-2 or MIPI DSI application at data rates of up to 2.5Gbps in D-PHY. The device compensates for PCB, connector, cable-related, and switching-related loss by providing the optimum electrical performance from a CSI2/DSI source to sink.

The inputs of the Diodes Inc PI2MEQX2503 ReDriver feature configurable equalizers. The PI2MEQX2503 output voltage swing and edge rate can be adjusted by changing the pin state. The device is optimized for mobile applications and incorporates activity detection circuitry on the D-PHY Link interface that can traverse into a lower power mode when in ULPS and LP states.

The PI2MEQX2503 operates at an industrial temperature range from -40°C to +85°C.

Features

MIPI D-PHY1.2 specification-compliant
Enables low-cost cable solutions
Supports 2x lanes at 2.5Gbps in D-PHY
Sub mW power in shutdown state
Supports MIPI DSI bi-directional LP mode
Supports ULPS and LP power states
Adjustable output voltage swing
Selectable TX pre-emphasis levels
Adjustable Rx EQ to compensate for insertion loss

Configurable edge rate control
Dynamic data compensation
2kV ESD HBM protection
Industrial temperature range of -40°C to +85°C
Available in single 1.8V supply
Totally lead-free and fully RoHS compliant
Halogen and antimony-free, Green device
24-pin, X1QFN (XEA) packaging

Applications

Notebook PCs
Clamshells

Tablets
Cameras

Diodes Incorporated PI2MEQX2503 CSI-2/DSI D-PHY ReDriver

Features

Applications

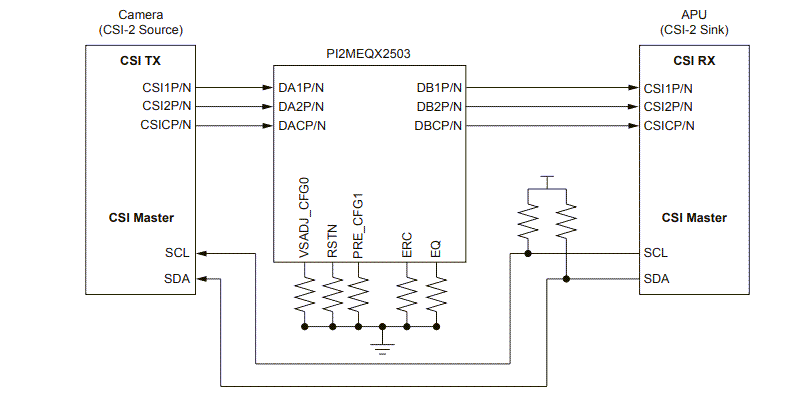

Block Diagram

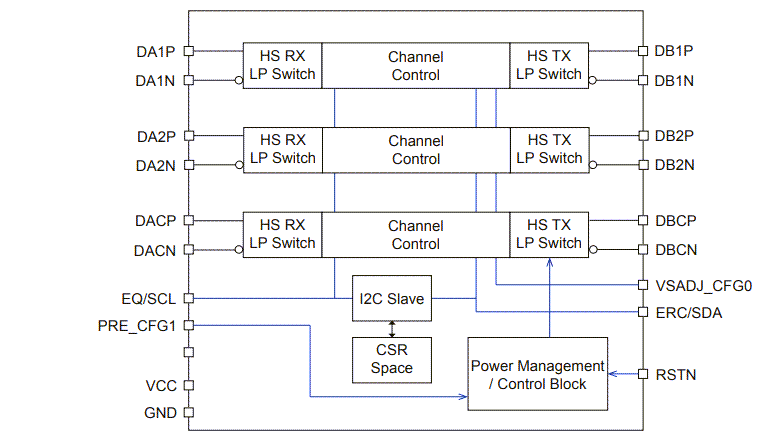

Functional Block Diagram
